IX2120 Datasheet - IXYS

1200V High and Low Side Gate Driver

IX2120 Features

* Floating Channel for Bootstrap Operation to +1200V

* Outputs Capable of Sourcing and Sinking 2A

* Gate Drive Supply Range From 15V to 20V

* Enhanced Robustness due to SOI Process

* Tolerant to Negative Voltage Transients: dV/dt Immune

* 3.3V Logic Co

IX2120 General Description

The IX2120 is a high voltage integrated circuit that can drive high speed MOSFETs and IGBTs that operate at up to +1200V. The IX2120 is configured with independent high-side and low-side referenced output channels, both of which can source and sink 2A. The floating high-side channel can drive an N-c.

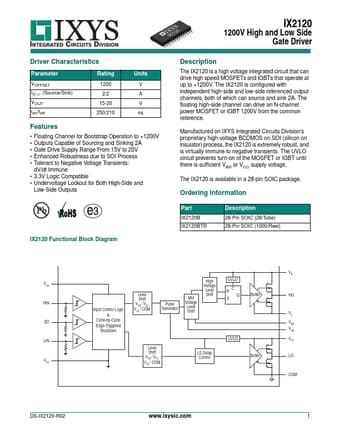

IX2120 Datasheet (263.74 KB)

IX2120 Datasheet Preview — Preview of IX2120 PDF

Datasheet Details

Part number:

IX2120

Manufacturer:

IXYS

File Size:

263.74 KB

Description:

1200v high and low side gate driver.
INTEGRATED CIRCUITS DIVISION Driver Characteristics Parameter VOFFSET IO +/- (Source/Sink) VOUT ton/toff Rating 1200 2/2 15-20 250/210 Units V A V.
