IXDN55N120D1 - High Voltage IGBT

IXDN55N120D1 Description

IXDN 55N120 D1 High Voltage IGBT with optional Diode Short Circuit SOA Capability Square RBSOA VCES = 1200 V IC25 = 100 A V =CE(sat) typ 2.3 V C mi.

IXDN55N120D1 Features

* NPT IGBT technology
* low saturation voltage
* low switching losses
* square RBSOA, no latch up
* high short circuit capability
* positive temperature coefficient for easy paralleling
* MOS input, voltage controlled
* optional ultra fast diode
* International st

IXDN55N120D1 Applications

* AC motor speed control
* DC servo and robot drives
* DC choppers
* Uninteruptible power supplies (UPS)
* Switch-mode and resonant-mode power supplies 203 © 2002 IXYS All rights reserved 1-4 Symbol Cies Coes Cres Qg td(on) t r td(off) t f Eon E off RthJC RthCK Conditions C

📥 Download Datasheet

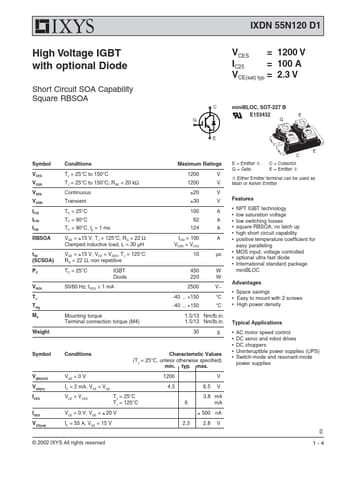

Preview of IXDN55N120D1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IXDN55N120D1
Manufacturer
IXYS
File Size
73.96 KB
Datasheet
IXDN55N120D1-IXYS.pdf
Description
High Voltage IGBT
