M1080LC120, M1080LC100 Datasheet - IXYS

M1080LC120 Fast Recovery Diode

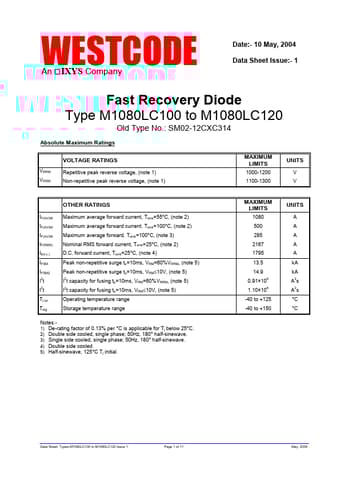

WESTCODE An IXYS Company Date:- 10 May, 2004 Data Sheet Issue:- 1 Fast Recovery Diode Type M1080LC100 to M1080LC120 Old Type No.: SM02-12CXC314 Absolute Maximum Ratings VRRM VRSM VOLTAGE RATINGS Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 1000-1200 1100-1300 UNITS V V IF(AV)M IF(AV)M IF(AV)M IF(RMS) If(d.c.) IFSM IFSM2 I2t I2t Tj op Tstg OTHER RATINGS Maximum average forward current, Tsink=55°C, (note 2) Maximum average forward .

M1080LC100-IXYS.pdf

This datasheet PDF includes multiple part numbers: M1080LC120, M1080LC100. Please refer to the document for exact specifications by model.
M1080LC120 Datasheet Preview Page 2 M1080LC120 Datasheet Preview Page 3

Datasheet Details

Part number:

M1080LC120, M1080LC100

Manufacturer:

IXYS

File Size:

469.76 KB

Description:

Fast recovery diode.

Note:

This datasheet PDF includes multiple part numbers: M1080LC120, M1080LC100.
Please refer to the document for exact specifications by model.
