M1010NC400 Datasheet - IXYS

M1010NC400 Fast Recovery Diode

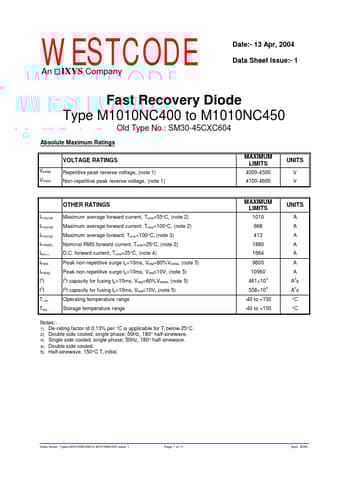

WESTCODE An IXYS Company Date:- 13 Apr, 2004 Data Sheet Issue:- 1 Fast Recovery Diode Type M1010NC400 to M1010NC450 Old Type No.: SM30-45CXC604 Absolute Maximum Ratings VRRM VRSM VOLTAGE RATINGS Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 4000-4500 4100-4600 UNITS V V IF(AV)M IF(AV)M IF(AV)M IF(RMS) If(d.c.) IFSM IFSM2 I2t I2t Tj op Tstg OTHER RATINGS Maximum average forward current, Tsink=55°C, (note 2) Maximum average forward .

M1010NC400 Datasheet (346.51 KB)
