M101GWWF-R0 - Color Active Matrix Liquid Crystal Display

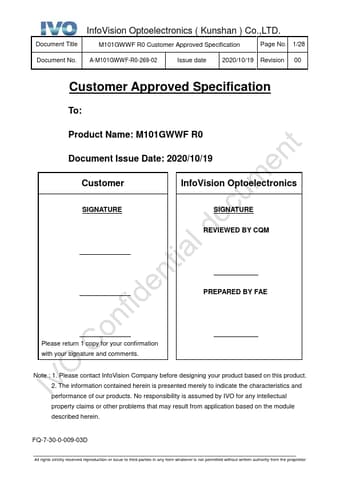

M101GWWF-R0 Datasheet Preview — Preview of M101GWWF-R0 PDF

Datasheet Details

Part number	M101GWWF-R0
Manufacturer	IVO
File Size	758.12 KB
Description	Color Active Matrix Liquid Crystal Display
Datasheet	M101GWWF-R0-IVO.pdf

M101GWWF-R0 Product details

Description

4 2.0 ABSOLUTE MAXIMUM RATINGS 6 3.0 OPTICAL CHARACTERISTICS 8 4.0 ELECTRICAL CHARACTERISTICS 11 5.0 MECHANICAL CHARACTERISTICS 21 6.0 RELIABILITY CONDITIONS 23 7.0 PACKAGE SPECIFICATION 24 8.0 LOT MARK 25 9.0 GENERAL PRECAUTION 27 _____________________________________________________________________ All rights strictly reserved reproduction or issue to third parties in any form whatever is not permitted without written authority from the proprietor InfoVision Optoelectronics ( Kunshan

Features

Supported WXGA Resolution.
LVDS Interface.
Wide View Angle.
Compatible with RoHS Standard 1.3 Product Summary Items Specifications Unit Screen Diagonal 10.1 inch Active Area (H x V) 216.96 x135.60 mm Number of Pixels (H x V) 1280x800 - Pixel Pitch (H x V) 0.1695×0.1695 mm Pixel Arrangement R. G. B. Vertical Stripe - Display Mode White Luminance Normally Black 350 (Typ. ) cd /m2 Contrast Ratio 800 (Typ. ) - Response Time 25 (Typ. ) ms Input Voltage.
