M101NWN8R0 - Display

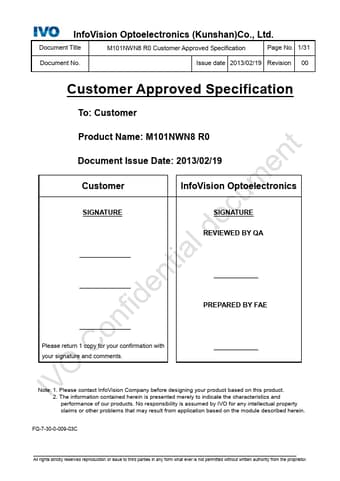

M101NWN8R0 Datasheet Preview — Preview of M101NWN8R0 PDF

Datasheet Details

Part number	M101NWN8R0
Manufacturer	IVO
File Size	954.17 KB
Description	Display
Datasheet	M101NWN8R0-IVO.pdf

M101NWN8R0 Product details

Description

-- New Description First issued.Remark _____________________________________________________________________ All rights strictly reserved reproduction or issue to third parties in any form what ever is not permitted without written authority from the proprietor.InfoVision Optoelectronics (Kunshan)Co., Ltd.Document Title M101NWN8 R0 Customer Approved Specification Page No.3/31 Document No.Issue date 2013/02/19 Revision 00 Contents 1.0 General Descriptions 4 2.0 Absolute Maximum Rat

Features

10.1” TFT-LCD Panel.
LED Backlight System.
Supported HD 1,366x768 pixels resolution.
Compatible with ROHS standard 1.3 Product Summary Items Specifications Unit Screen Diagonal 10.1 Inch Active Area 222.5214 (H) x 125.1072 (V) mm Pixels (H x V) 1,366 (RGB) x 768 - Pixel Pitch 0.1629(H)x0.1629(V) mm Pixel Arrangement R. G. B. Vertical Stripe - Display Mode White Luminance Normally White 200(typ. )(5 Points Average) cd /m2.
