M1502ND220, M1502NC200 Datasheet - IXYS

M1502ND220 Fast Recovery Diode

WESTCODE An IXYS Company Date:- 9 Sep, 2004 Data Sheet Issue:- 1 Fast Recovery Diode Type M1502N#200 to M1502N#250 Old Type No.: SM16-25CXC334 Absolute Maximum Ratings VRRM VRSM VOLTAGE RATINGS Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 2000 - 2500 2100 - 2600 UNITS V V IF(AV)M IF(AV)M IF(AV)M IF(RMS) IF(d.c.) IFSM IFSM2 I2t I2t Tj op Tstg OTHER RATINGS Maximum average forward current, Tsink=55°C, (note 2) Maximum average forwa.

M1502NC200-IXYS.pdf

This datasheet PDF includes multiple part numbers: M1502ND220, M1502NC200. Please refer to the document for exact specifications by model.

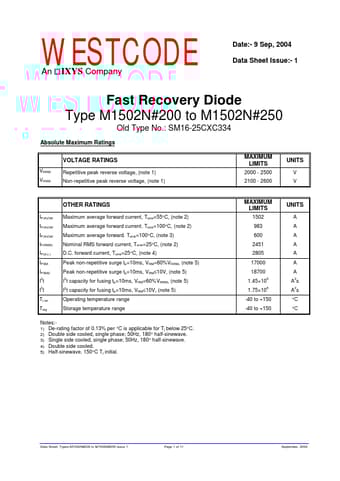

M1502ND220 Datasheet Preview Page 2 M1502ND220 Datasheet Preview Page 3

Datasheet Details

Part number:

M1502ND220, M1502NC200

Manufacturer:

IXYS

File Size:

354.54 KB

Description:

Fast recovery diode.

Note:

This datasheet PDF includes multiple part numbers: M1502ND220, M1502NC200.
Please refer to the document for exact specifications by model.
