M1502ND250 Datasheet - IXYS

M1502ND250 Fast Recovery Diode

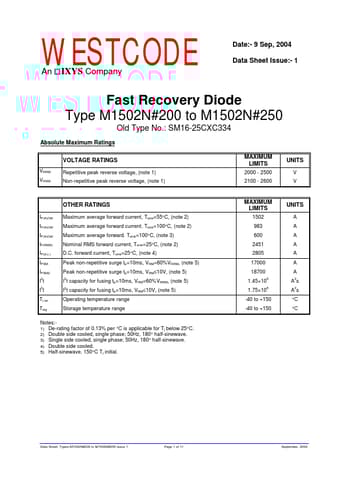

WESTCODE An IXYS Company Date:- 9 Sep, 2004 Data Sheet Issue:- 1 Fast Recovery Diode Type M1502N#200 to M1502N#250 Old Type No.: SM16-25CXC334 Absolute Maximum Ratings VRRM VRSM VOLTAGE RATINGS Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 2000 - 2500 2100 - 2600 UNITS V V IF(AV)M IF(AV)M IF(AV)M IF(RMS) IF(d.c.) IFSM IFSM2 I2t I2t Tj op Tstg OTHER RATINGS Maximum average forward current, Tsink=55°C, (note 2) Maximum average forwa.

M1502ND250 Datasheet (354.54 KB)
