MCC255-14io1 - Thyristor

MCC255-14io1 Description

Thyristor Module Phase leg Part number MCC255-14io1 3 67 1 542 MCC255-14io1 VRRM I TAV VT = 2x 1400 V = 250 A = 1,08 V Backside: isolated Feat.

MCC255-14io1 Features

* / Advantages:
* International standard package
* Direct copper bonded Al2O3-ceramic with copper base plate
* Planar passivated chip

MCC255-14io1 Applications

* Motor control, softstarter
* Power converter
* Heat and temperature control for industrial furnaces and chemical processes
* Lighting control
* Solid state switches Package: Y1
* Isolation Voltage: 4800 V~
* Industry standard outline
* RoHS compliant
* Solderi

📥 Download Datasheet

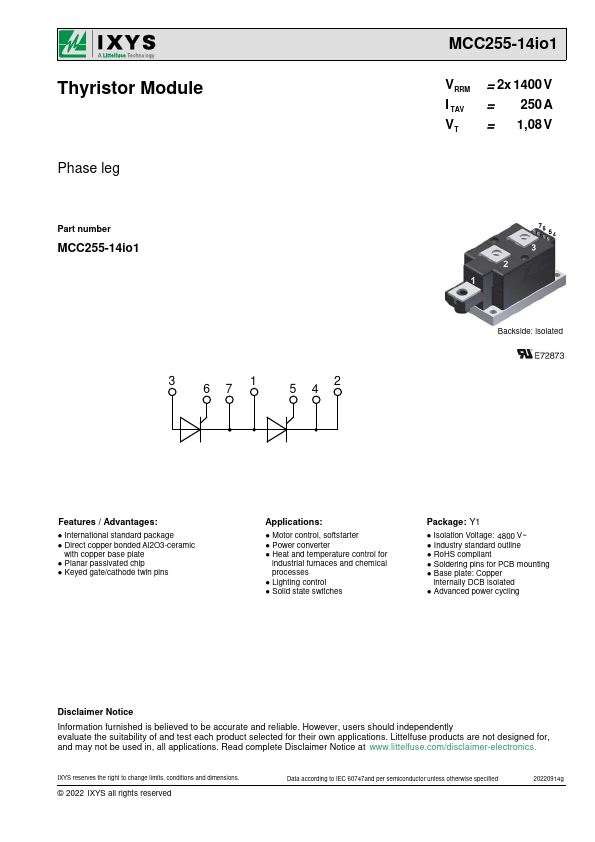

Preview of MCC255-14io1 PDF

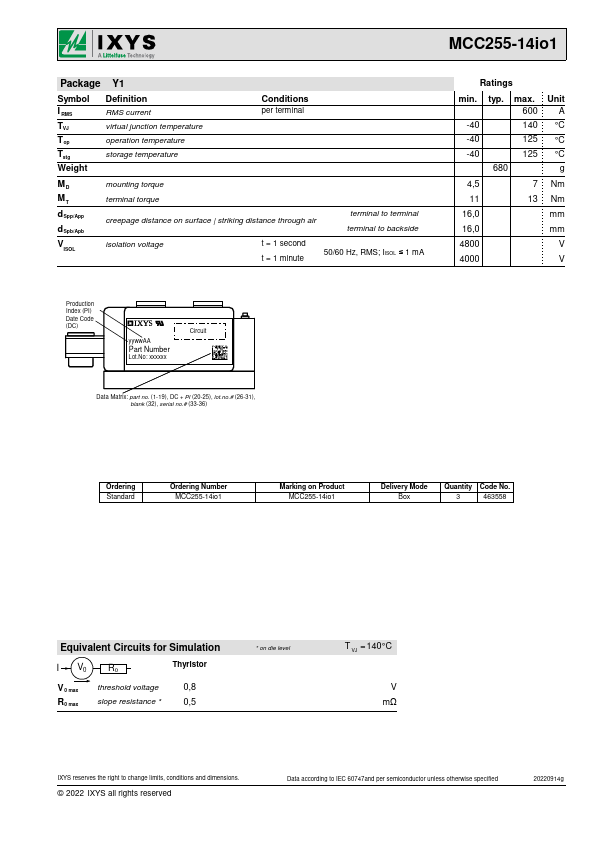

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MCC255-14io1
Manufacturer
IXYS
File Size
137.34 KB
Datasheet
MCC255-14io1-IXYS.pdf
Description
Thyristor
