MCMA140PD1600TB-NI Datasheet - IXYS

Thyristor / Diode Module

MCMA140PD1600TB-NI Features

* / Advantages:

* Thyristor for line frequency

* Planar passivated chip

* Long-term stability

* Direct Copper Bonded Al2O3-ceramic Applications:

* Line rectifying 50/60 Hz

* Softstart AC motor control

* DC Motor control

* Power converter

* AC power control

* Li

MCMA140PD1600TB-NI General Description

M = Module C = Thyristor (SCR) M = Thyristor A = (up to 1800V) 140 = Current Rating [A] PD = Phase leg 1600 = Reverse Voltage [V] TB = TO-240AA-1B - = Hyphen NI = without metal inserts Ordering Standard Ordering Number MCMA140PD1600TB-NI Marking on Product MCMA140PD1600TB-NI Delivery Mode Box Q.

MCMA140PD1600TB-NI Datasheet (410.11 KB)

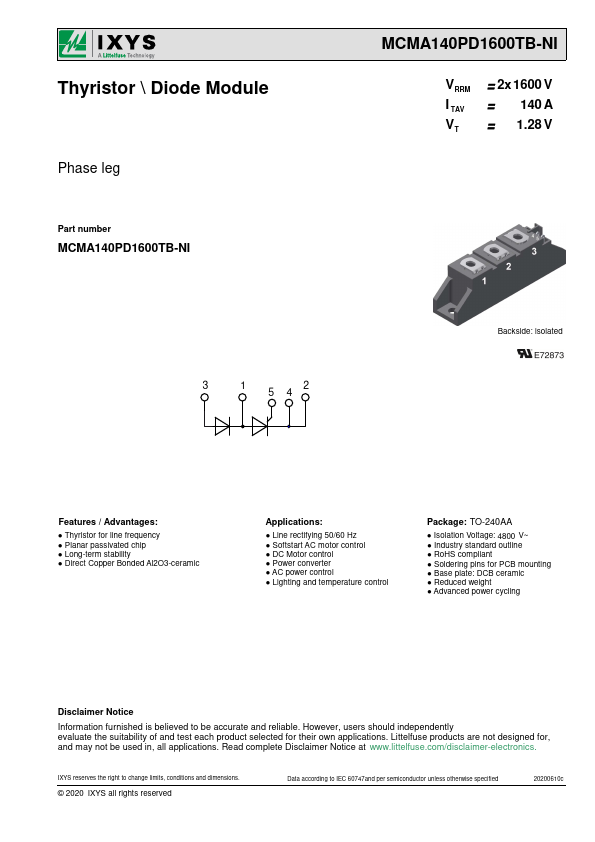

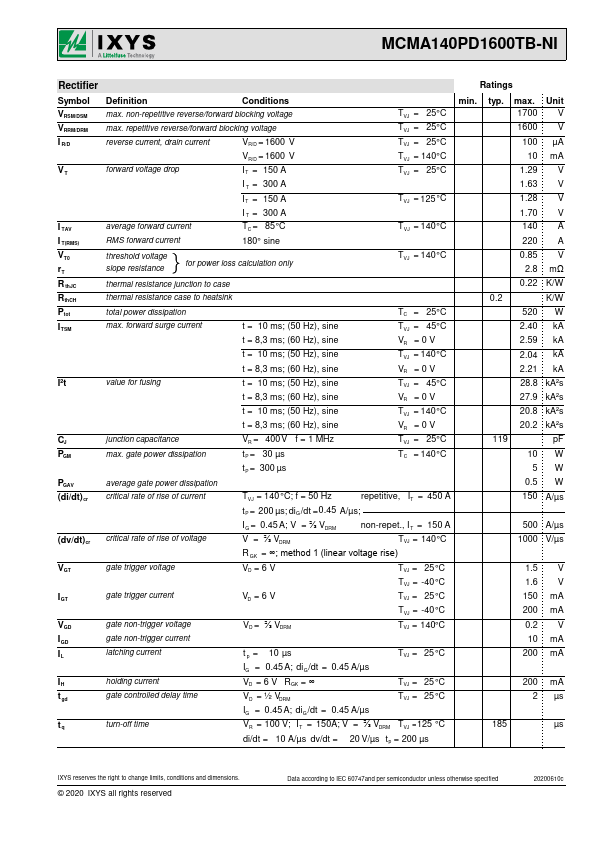

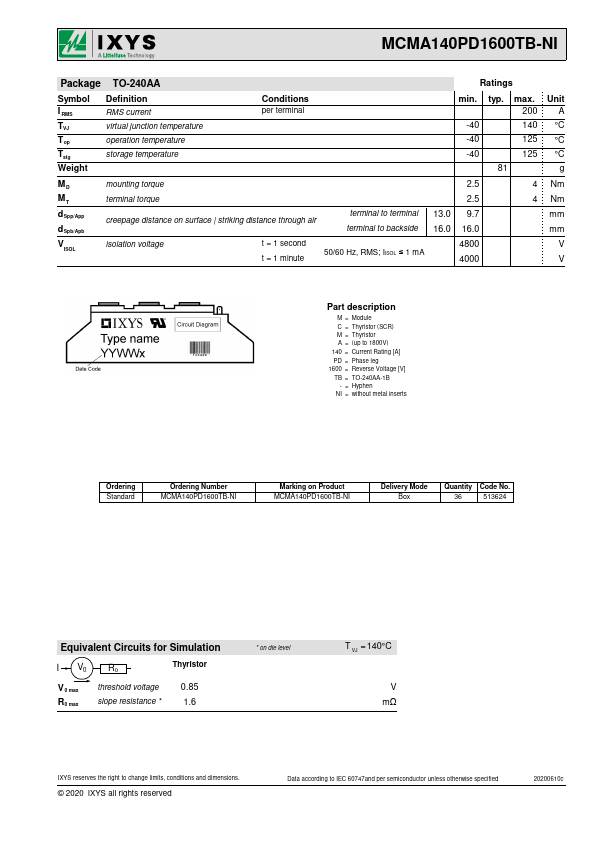

MCMA140PD1600TB-NI Datasheet Preview — Preview of MCMA140PD1600TB-NI PDF

Datasheet Details

Part number:

MCMA140PD1600TB-NI

Manufacturer:

IXYS

File Size:

410.11 KB

Description:

Thyristor / diode module.
Thyristor Diode Module Phase leg Part number MCMA140PD1600TB-NI MCMA140PD1600TB-NI VRRM I TAV VT = 2x 1600 V = 140 A = 1.28 V 3 1 5 42 Backside.
