MCMA400PD1600PTSF Thyristor Diode Module

MCMA400PD1600PTSF Description

Thyristor Diode Module Phase leg + NTC Part number MCMA400PD1600PTSF MCMA400PD1600PTSF VRRM I TAV VT = 2x 1600 V = 400 A = 1.28 V 1 T2 T1 15/1.
M = Module C = Thyristor (SCR) M = Thyristor A = (up to 1800V) 400 = Current Rating [A] PD = Phase leg 1600 = Reverse Voltage [V] PT = PressFit-Pin, T.

MCMA400PD1600PTSF Features

* / Advantages:
* Thyristor for line frequency
* Planar passivated chip
* Long-term stability

MCMA400PD1600PTSF Applications

* Line rectifying 50/60 Hz
* Softstart AC motor control
* DC Motor control
* Power converter
* AC power control
* Lighting and temperature control Package: SimBus F
* Isolation Voltage: 4300 V~
* Industry standard outline
* RoHS compliant
* PressFit-Pins for

📥 Download Datasheet

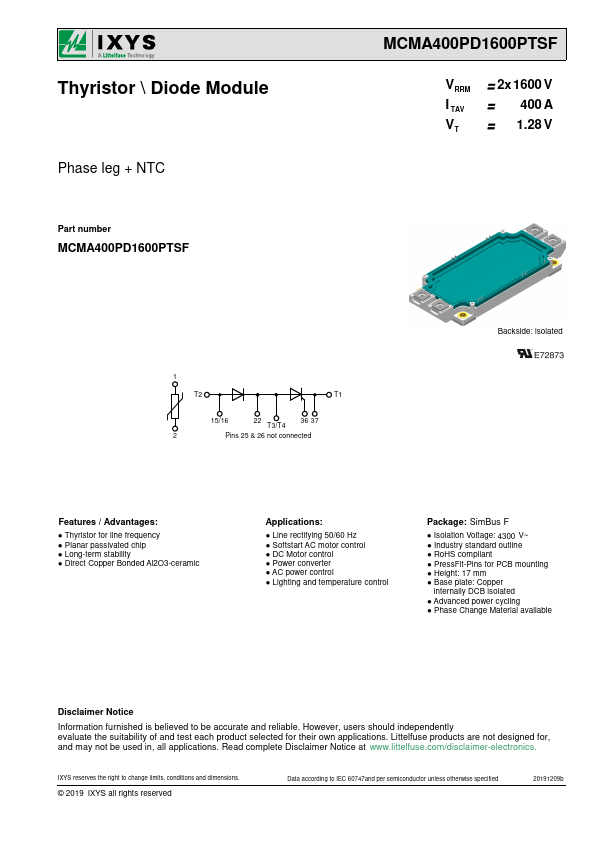

Preview of MCMA400PD1600PTSF PDF

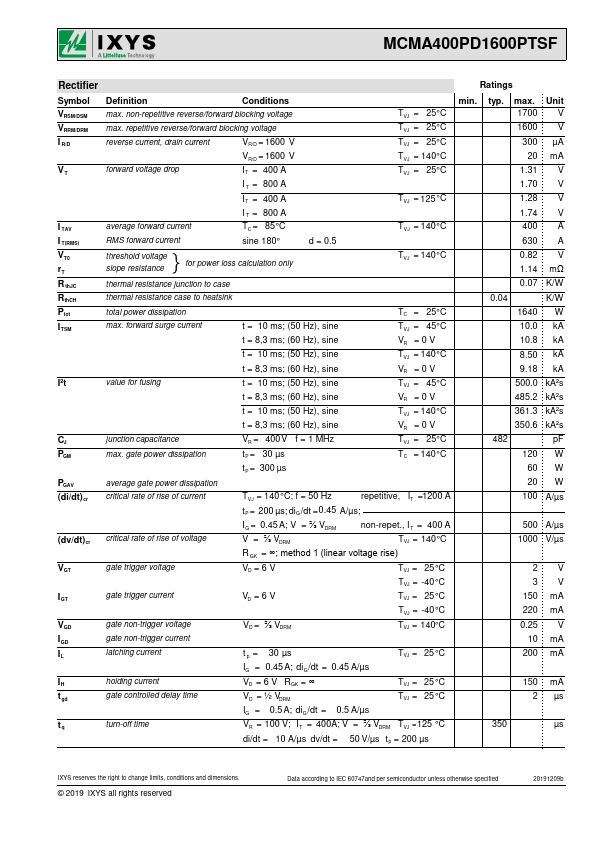

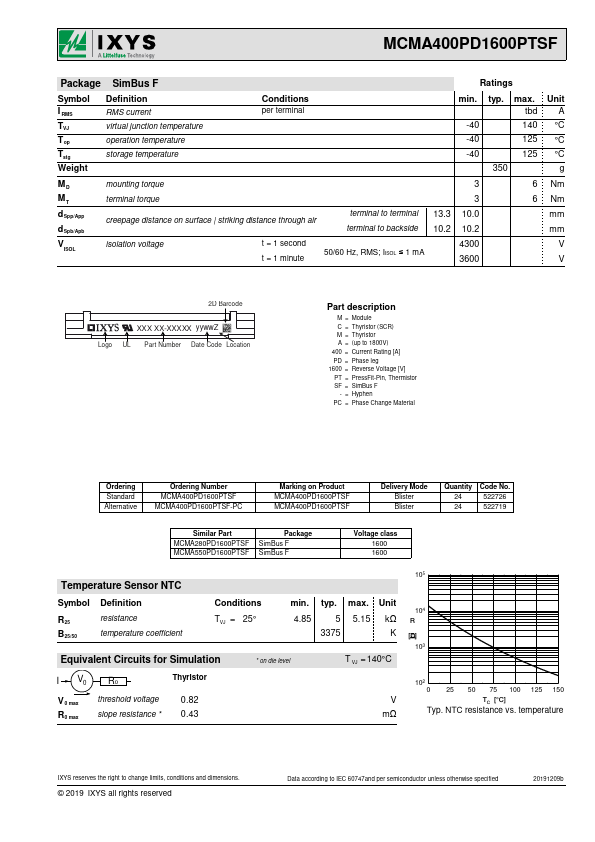

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MCMA400PD1600PTSF
Manufacturer
IXYS
File Size
337.40 KB
Datasheet
MCMA400PD1600PTSF-IXYS.pdf
Description
Thyristor Diode Module
