MCNA150PD2200YB High Voltage Thyristor / Diode Module

📥 Download Datasheet Datasheet Preview Page 1

Description

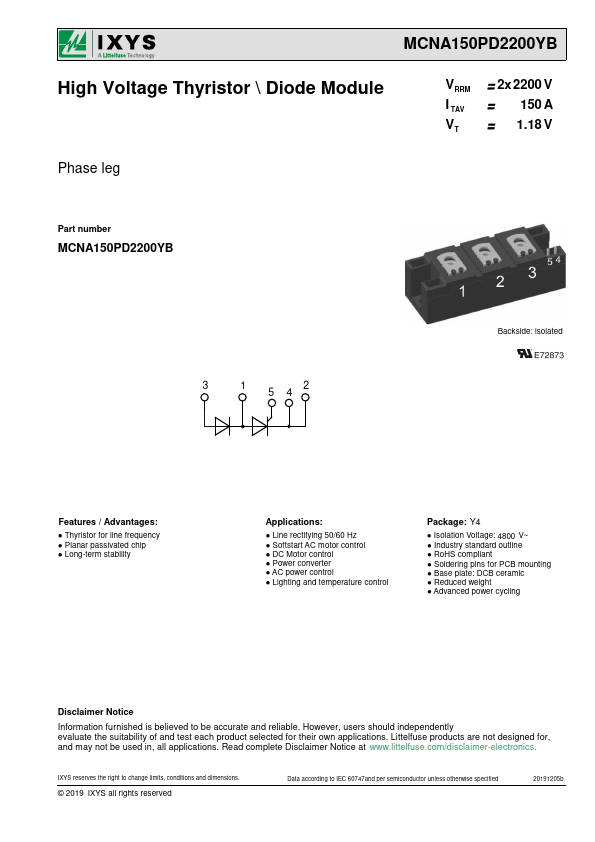

MCNA150PD2200YB High Voltage Thyristor Diode Module VRRM I TAV VT = 2x 2200 V = 150 A = 1.18 V Phase leg Part number MCNA150PD2200YB 3 1 5 42 .
M = Module C = Thyristor (SCR) N = High Voltage Thyristor A = (>= 2000V) 150 = Current Rating [A] PD = Phase leg 2200 = Reverse Voltage [V] YB = Y4-M6.

📥 Download Datasheet

Preview of MCNA150PD2200YB PDF

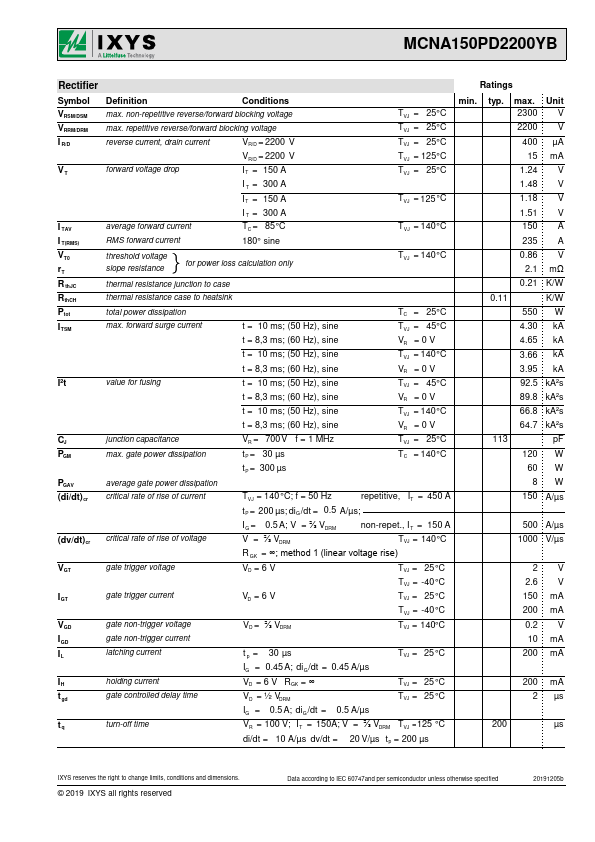

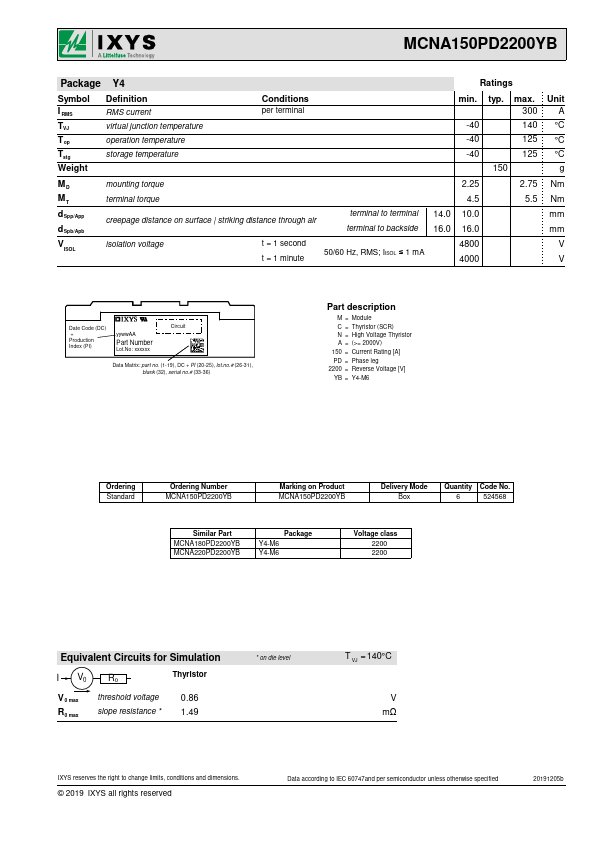

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MCNA150PD2200YB
Manufacturer
IXYS
File Size
221.32 KB
Datasheet
MCNA150PD2200YB-IXYS.pdf
Description
High Voltage Thyristor / Diode Module

Features

* / Advantages:
* Thyristor for line frequency
* Planar passivated chip

Applications

* Line rectifying 50/60 Hz
* Softstart AC motor control
* DC Motor control
* Power converter
* AC power control
* Lighting and temperature control Package: Y4
* Isolation Voltage: 4800 V~
* Industry standard outline
* RoHS compliant
* Soldering pins for PCB
