MCNA180PD2200YB Datasheet - IXYS

High Voltage Thyristor / Diode Module

MCNA180PD2200YB Features

* / Advantages:

* Thyristor for line frequency

* Planar passivated chip

* Long-term stability Applications:

* Line rectifying 50/60 Hz

* Softstart AC motor control

* DC Motor control

* Power converter

* AC power control

* Lighting and temperature control Package:

MCNA180PD2200YB General Description

M = Module C = Thyristor (SCR) N = High Voltage Thyristor A = (>= 2000V) 180 = Current Rating [A] PD = Phase leg 2200 = Reverse Voltage [V] YB = Y4-M6 Ordering Standard Ordering Number MCNA180PD2200YB Marking on Product MCNA180PD2200YB Delivery Mode Box Quantity Code No. 6 520502 Similar Par.

MCNA180PD2200YB Datasheet (227.62 KB)

Preview of MCNA180PD2200YB PDF

Datasheet Details

Part number:

MCNA180PD2200YB

Manufacturer:

IXYS

File Size:

227.62 KB

Description:

High voltage thyristor / diode module.

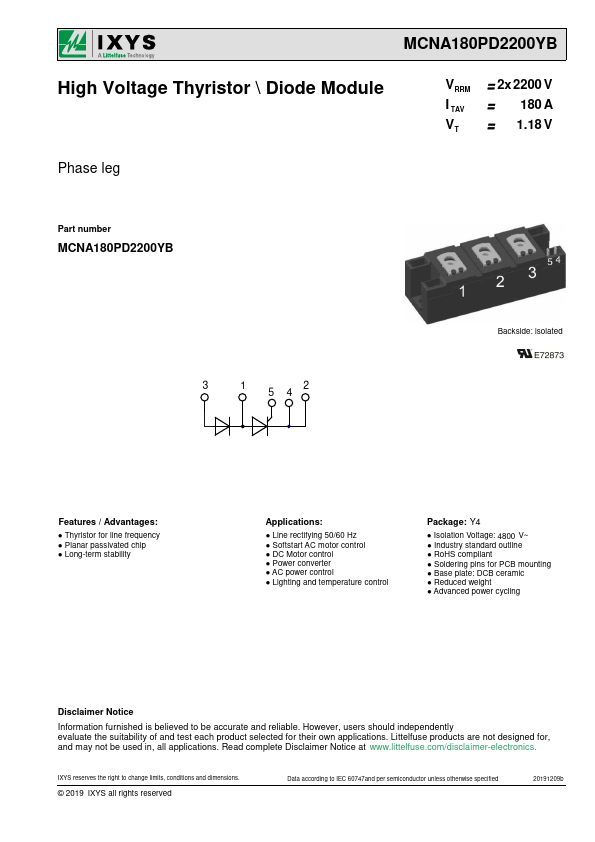

MCNA180PD2200YB High Voltage Thyristor Diode Module VRRM I TAV VT = 2x 2200 V = 180 A = 1.18 V Phase leg Part number MCNA180PD2200YB 3 1 5 42 .

📁 Related Datasheet

MCNA220P2200YA High Voltage Thyristor (IXYS)

MCNA55P2200TA High Voltage Thyristor (IXYS)

MCNA650PD2200CB High Voltage Thyristor / Diode Module (IXYS)

MCNA75PD2200TB High Voltage Thyristor/Diode (IXYS)

MCNA95PD2200TB High-Voltage Thyristor/Diode (IXYS)

MCN5802B N-Channel 20-V (D-S) MOSFET (FreesCale)

MCN7702 N-Channel MOSFET (Freescale)

MC-059C TELEVISOR A COLORES (LG)

MC-10H124-F MC10H124FN (Motorola)

MC-146 THIN SMD LOW/MEDIUM-FREQUENCY CRYSTAL (Epson Company)

TAGS

MCNA180PD2200YB High Voltage Thyristor Diode Module IXYS

Image Gallery

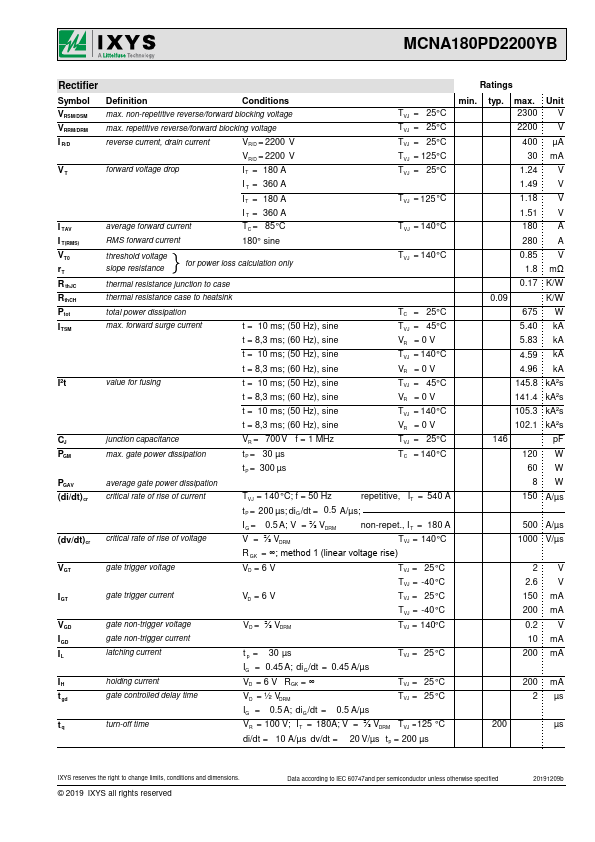

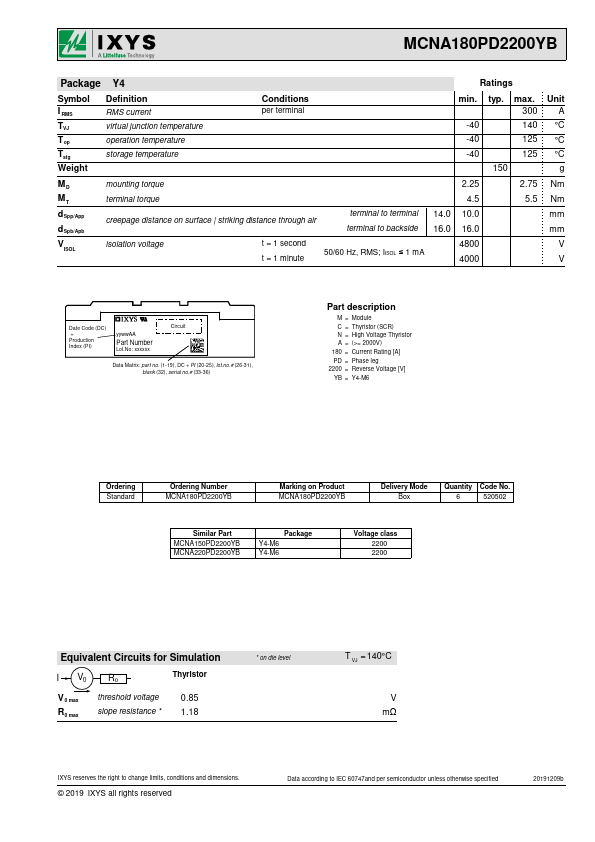

MCNA180PD2200YB Datasheet Preview Page 2 MCNA180PD2200YB Datasheet Preview Page 3
