MDD255-14N1 Standard Rectifier Module

IXYS

Description

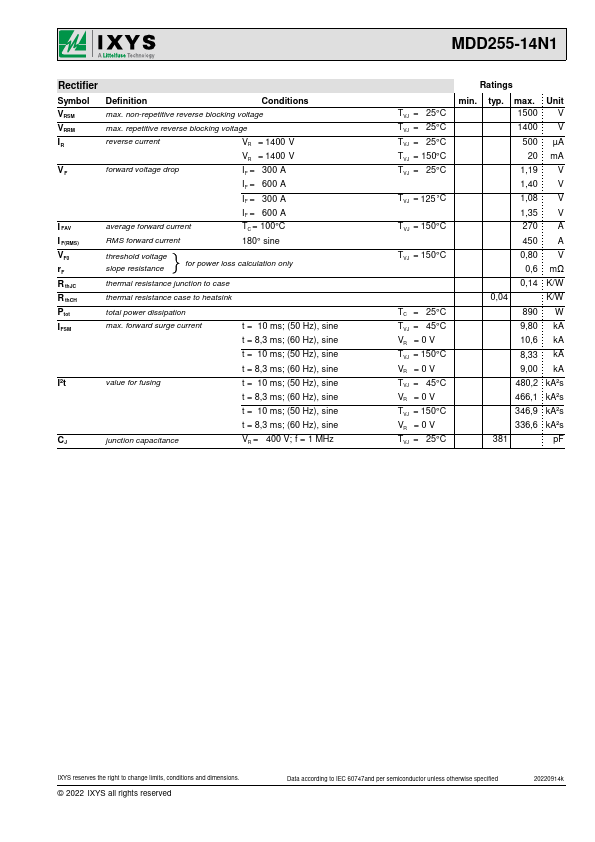

Standard Rectifier Module Phase leg Part number MDD255-14N1 2 1 3 MDD255-14N1 VRRM I FAV VF = 2x 1400 V = 270 A = 1,08 V Backside: isolated Fe.

📥 Download Datasheet

MDD255-14N1 Datasheet Preview — Preview of MDD255-14N1 PDF

Datasheet Specifications

Part number: MDD255-14N1
Manufacturer: IXYS
File Size: 144.78 KB
Datasheet: MDD255-14N1-IXYS.pdf
Description: Standard Rectifier Module

Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop

Applications

* Diode for main rectification
* For single and three phase bridge configurations
* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies

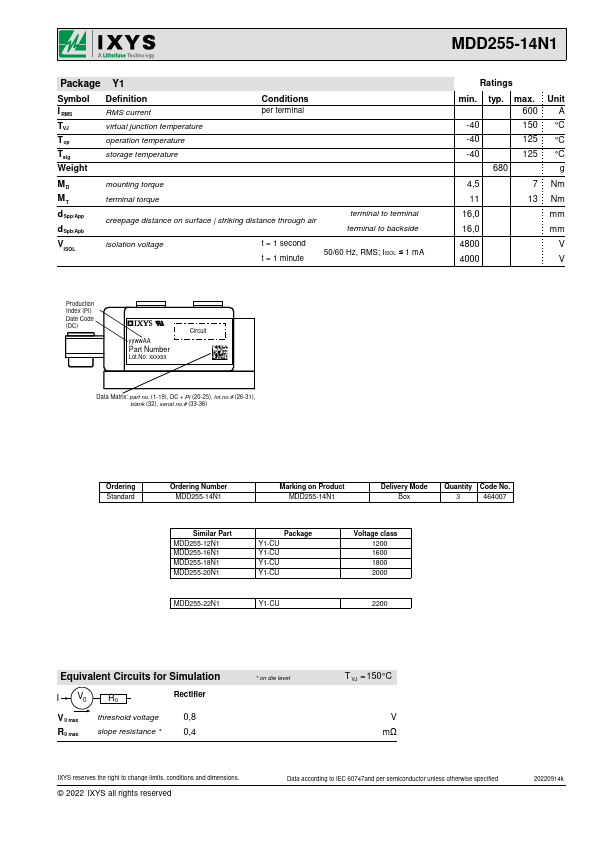

* Field supply for DC motors Package: Y1
* Isolation Voltage: 4800 V~
* Industry stand
