MMO90-16io6, MMO90 Datasheet - IXYS

MMO90-16io6, MMO90, Thyristor

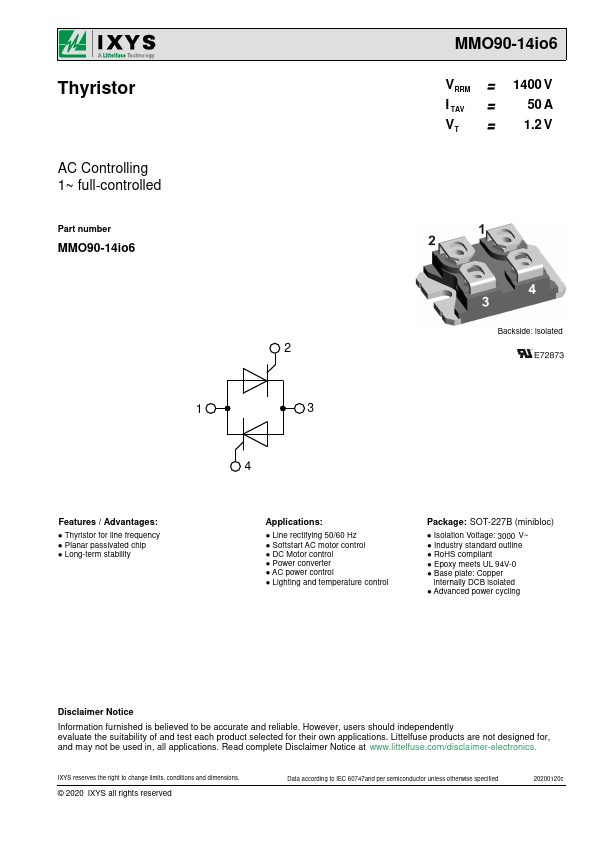

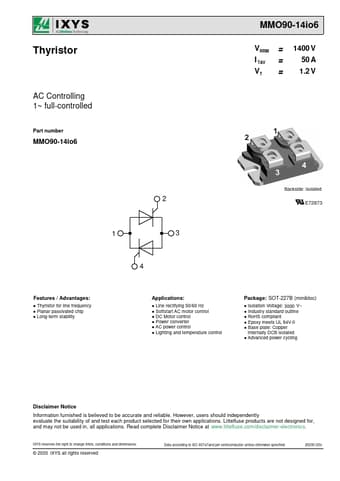

Thyristor AC Controlling 1~ full-controlled Part number MMO90-14io6 MMO90-14io6 VRRM = 1400 V I TAV = 50 A VT = 1.2 V Backside: isolated 2 1 .

datasheet Preview Page 1 from Datasheet4u.com

MMO90_IXYSCorporation.pdf

MMO90-16io6 Datasheet Preview — This datasheet PDF includes multiple part numbers: MMO90-16io6, MMO90. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MMO90-16io6, MMO90

Manufacturer:

IXYS

File Size:

554.60 KB

Description:

Thyristor

Note:

This datasheet PDF includes multiple part numbers: MMO90-16io6, MMO90.
Please refer to the document for exact specifications by model.

Features

* / Advantages:
* Thyristor for line frequency
* Planar passivated chip

Applications

* Line rectifying 50/60 Hz
* Softstart AC motor control
* DC Motor control
* Power converter
* AC power control
* Lighting and temperature control Package: SOT-227B (minibloc)
* Isolation Voltage: 3000 V~
* Industry standard outline
* RoHS compliant
* Epoxy
