MTI85W100GC Three phase full Bridge

IXYS

Description

Three phase full Bridge with Trench MOSFETs in DCB-isolated high-current package MTI85W100GC VDSS = 100 V ID25 = 120 A R = DSon typ.3.2 mW Part.

📥 Download Datasheet

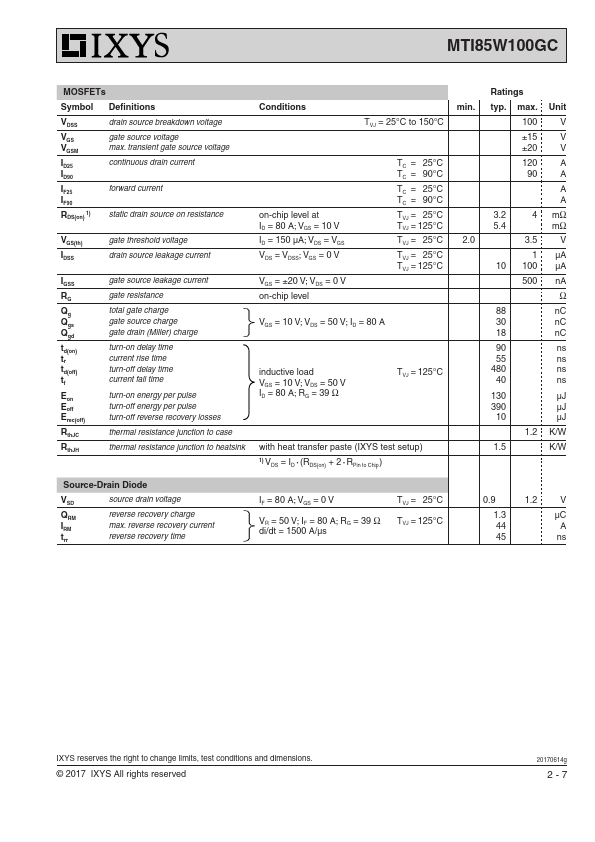

MTI85W100GC Datasheet Preview — Preview of MTI85W100GC PDF

Datasheet Specifications

Part number: MTI85W100GC
Manufacturer: IXYS
File Size: 398.20 KB
Datasheet: MTI85W100GC-IXYS.pdf
Description: Three phase full Bridge

Features

* / Advantages:
* MOSFETs in trench technology:
* low RDSon
* optimized intrinsic reverse diode
* Package:
* high level of integration
* high current capability (300 A max. )
* aux. terminals for MOSFET cont

Applications

* AC drives
* in automobiles
* electric power steering
* starter generator
* in industrial vehicles
* propulsion drives
* fork lift drives
* in battery supplied equipment L+ Surface Mount Device L1 L2 L3 L
