N0616LC400 Datasheet - IXYS

N0616LC400 Phase Control Thyristor

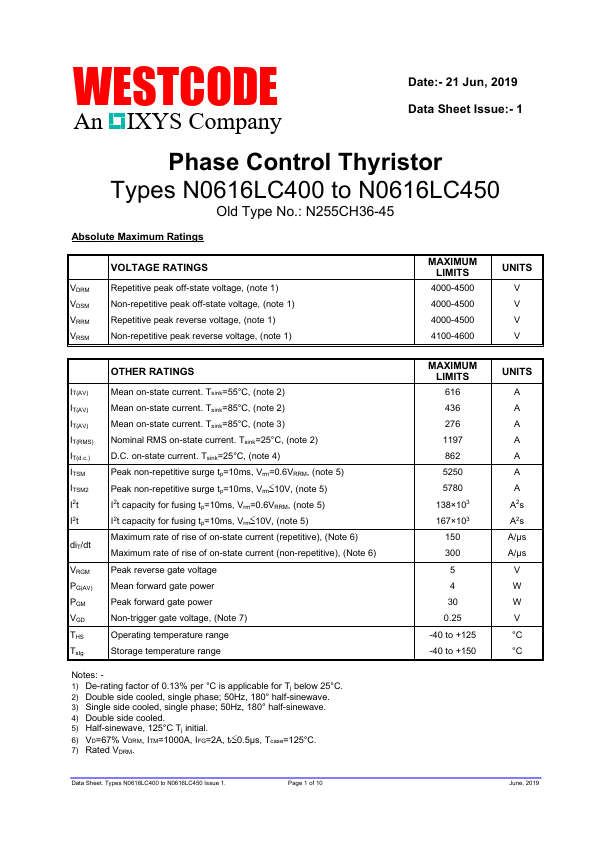

WESTCODE An IXYS Company Date:- 21 Jun, 2019 Data Sheet Issue:- 1 Phase Control Thyristor Types N0616LC400 to N0616LC450 Old Type No.: N255CH36-45 Absolute Maximum Ratings VDRM VDSM VRRM VRSM VOLTAGE RATINGS Repetitive peak off-state voltage, (note 1) Non-repetitive peak off-state voltage, (note 1) Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 4000-4500 4000-4500 4000-4500 4100-4600 UNITS V V V V IT(AV) IT(AV) IT(AV) IT(RMS) IT(d.c.

N0616LC400 Datasheet (614.46 KB)
