PBB150

Normally Closed OptoMOS Relay

PBB150 Features

* 3750Vrms Input/Output Isolation

* Low Drive Power Requirements (TTL/CMOS Compatible)

* High Reliability

* Arc-Free With No Snubbing Circuits

* FCC Compatible

* VDE Compatible

* No EMI/RFI Generation

* Small 8-Pin Package

* Mac

PBB150 General Description

PBB150 is a dual single-pole, normally closed (1-Form-B) solid state relay comprising two independently controlled, optically coupled MOSFET switches that use optically coupled MOSFET technology to provide 3750Vrms of input to output isolation. Its optically coupled outputs, which use the patented O.

PBB150 Datasheet (111.72 KB)

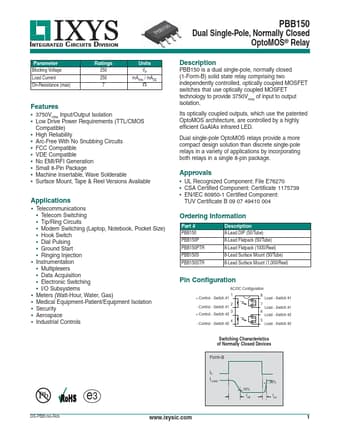

Preview of PBB150 PDF

Datasheet Details

Part number:

PBB150

Manufacturer:

IXYS

File Size:

111.72 KB

Description:

Normally closed optomos relay.
INTEGRATED CIRCUITS DIVISION PBB150 Dual Single-Pole, Normally Closed OptoMOSĀ® Relay Parameter Blocking Voltage Load Current On-Resistance (max) Ra.
