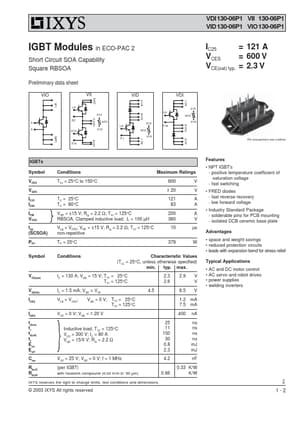

VDI130-06P1 VII 130-06P1 VID130-06P1 VIO130-06P1 IGBT Modules in ECO-PAC 2 Short Circuit SOA Capability Square RBSOA IC25 = 121 A VCES = 600 V VCE(sat) typ. = 2.3 V LMN IJK Preliminary data sheet VIO VII L9 X13 A E2 NTC S K10 X15 X16 GH10 OP9 AC1 VID VDI AC1 SV18 IK10 X15 L9 NTC X15 L9 T16 NTC X16 X16 F1 IK10 PS18 B3 Pin arangement see outlines VX18 IGBTs Symbol VCES VGES IC25 IC80 ICM VCEK tSC (SCSOA) Ptot Conditions Maximum Ratings TVJ = 25°C to 150°C 600 V ± 20 V TC .

VID130-06P1 Features

* NPT IGBT's - positive temperature coefficient of saturation voltage - fast switching

* FRED diodes - fast reverse recovery - low forward voltage

* Industry Standard Package - solderable pins for PCB mounting - isolated DCB ceramic base plate Advantages

* space and w
