VUO190-18NO7 Standard Rectifier Module

IXYS

Description

Standard Rectifier Module 3~ Rectifier Bridge Part number VUO190-18NO7 VUO190-18NO7 3~ Rectifier VRRM = I DAV = I FSM = 1800 V 240 A 2800 A A+ D1.

📥 Download Datasheet

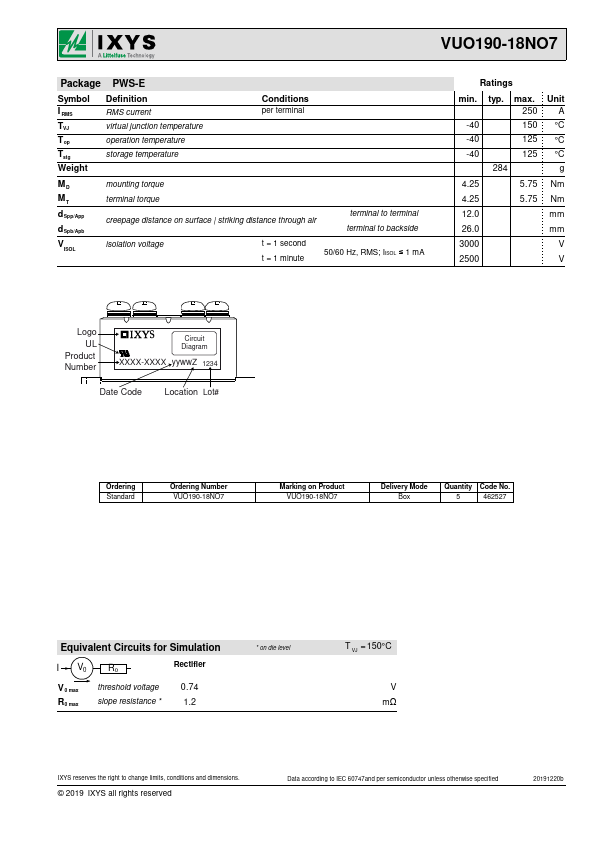

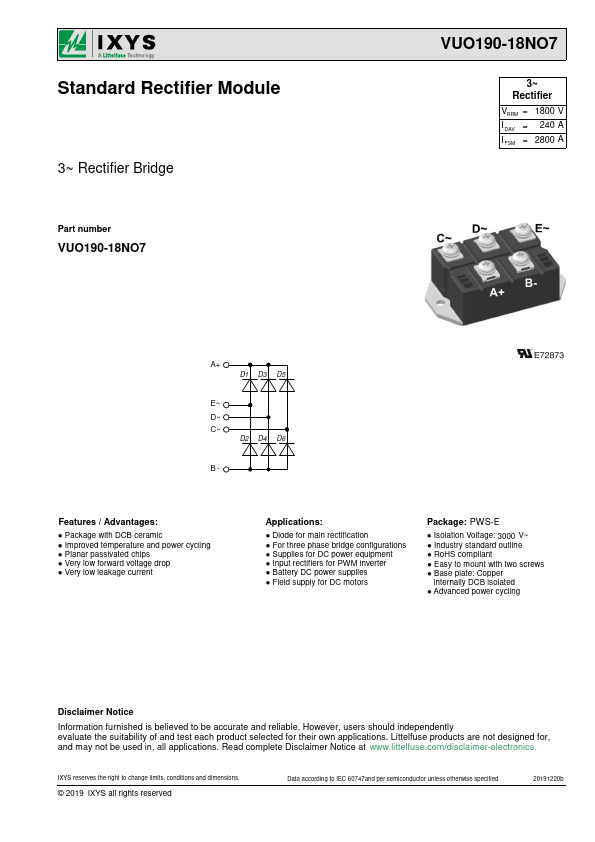

VUO190-18NO7 Datasheet Preview — Preview of VUO190-18NO7 PDF

Datasheet Specifications

Part number: VUO190-18NO7
Manufacturer: IXYS
File Size: 227.23 KB
Datasheet: VUO190-18NO7-IXYS.pdf
Description: Standard Rectifier Module

Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop

Applications

* Diode for main rectification
* For three phase bridge configurations
* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies
* Field supply for DC motors Package: PWS-E
* Isolation Voltage: 3000 V~
* Industry standard outl
