VUO192-16NO7 Datasheet - IXYS

datasheet Preview Page 1 from Datasheet4u.com

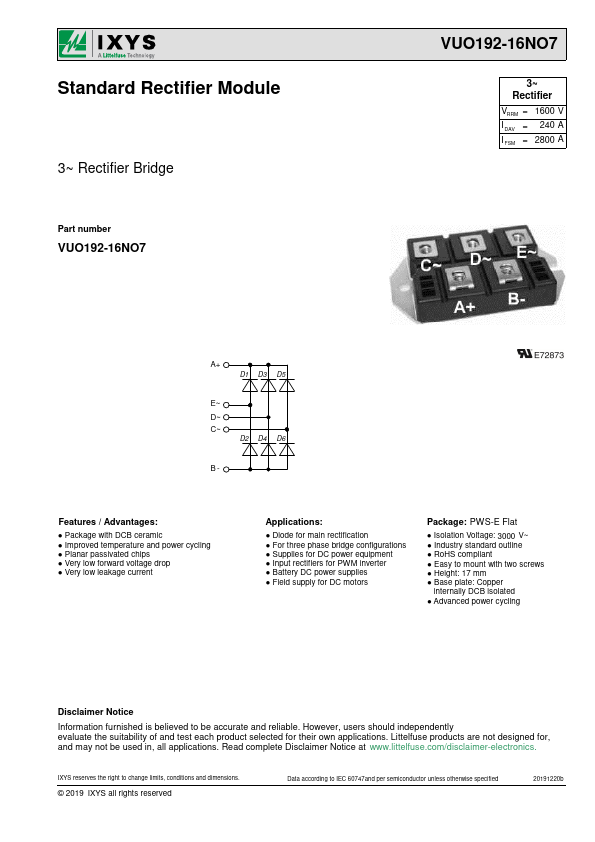

VUO192-16NO7 Standard Rectifier Module

Standard Rectifier Module 3~ Rectifier Bridge Part number VUO192-16NO7 VUO192-16NO7 3~ Rectifier VRRM = I DAV = I FSM = 1600 V 240 A 2800 A A+ D1.

VUO192-16NO7-IXYS.pdf

VUO192-16NO7 Datasheet Preview — Preview of VUO192-16NO7 PDF

Datasheet Details

Part number:

VUO192-16NO7

Manufacturer:

IXYS

File Size:

173.88 KB

Description:

Standard Rectifier Module

Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop

Applications

* Diode for main rectification
* For three phase bridge configurations
* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies
* Field supply for DC motors Package: PWS-E Flat
* Isolation Voltage: 3000 V~
* Industry standard
