VVZ40-16io1 Thyristor Module

VVZ40-16io1 Description

Thyristor Module 3~ Rectifier Bridge, half-controlled (high-side) Part number VVZ40-16io1 VVZ40-16io1 3~ Rectifier VRRM = I DAV = I FSM = 1600 V 4.

VVZ40-16io1 Features

* / Advantages:
* Package with DCB ceramic base plate
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop

VVZ40-16io1 Applications

* Line rectifying 50/60 Hz
* Drives
* SMPS
* UPS Backside: isolated Package: V1-B-Pack
* Isolation Voltage: 3600 V~
* Industry standard outline
* RoHS compliant
* Soldering pins for PCB mounting
* Height: 10 mm
* Base plate: DCB ceramic
* Reduced weight

📥 Download Datasheet

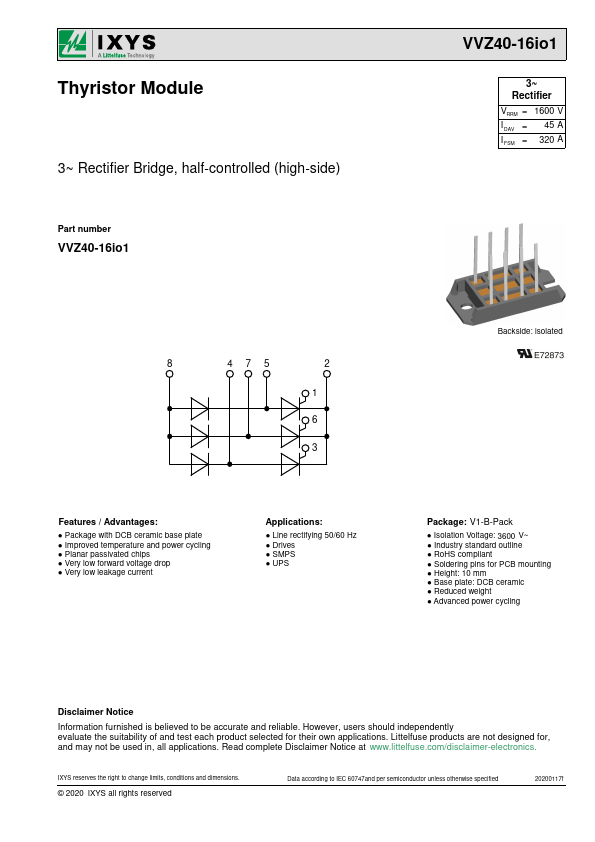

Preview of VVZ40-16io1 PDF

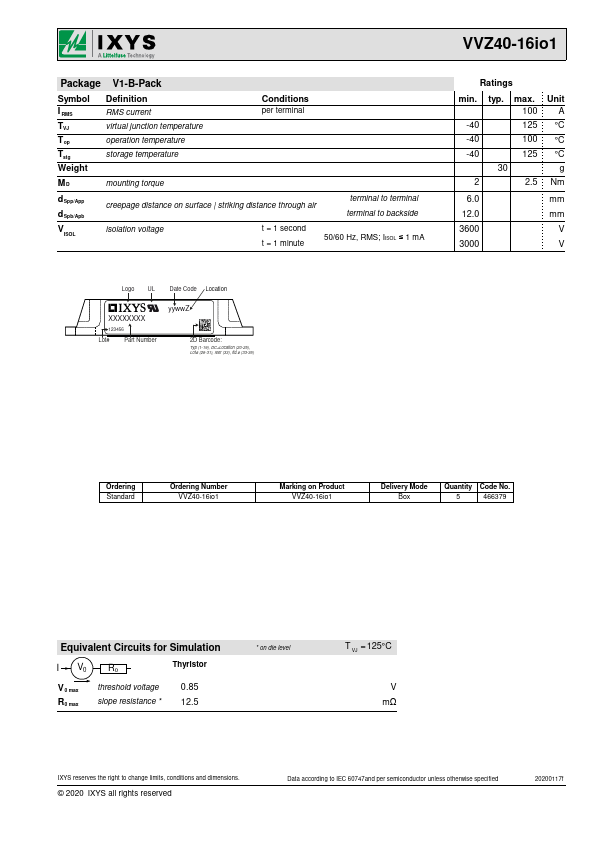

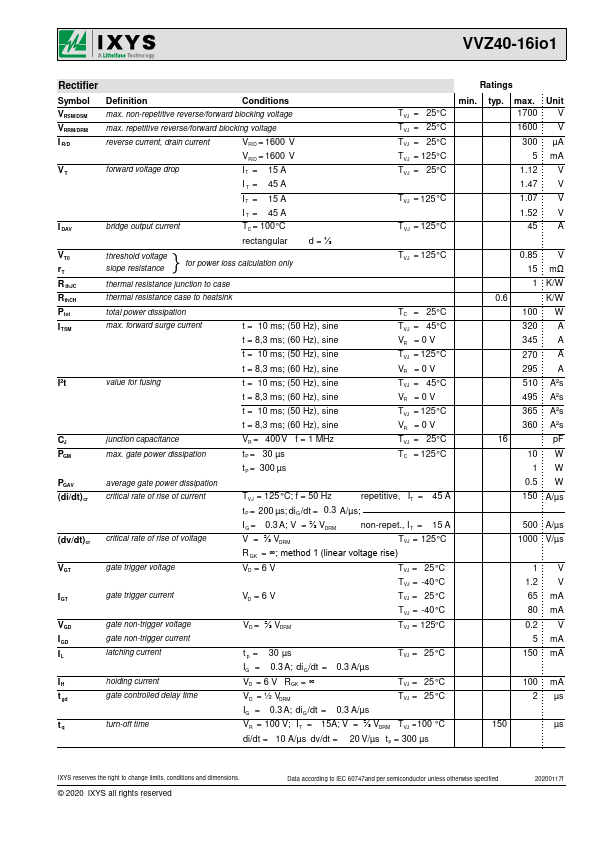

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VVZ40-16io1
Manufacturer
IXYS
File Size
202.03 KB
Datasheet
VVZ40-16io1-IXYS.pdf
Description
Thyristor Module
