* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop
* Very low leakage current
* NTC Applications:
* 3~ Rectifier with brake unit for drive inverters Backside: isolated Package: E2-P
VVZB135-16IOXT Datasheet (490.42 KB)
VVZB135-16IOXT
IXYS
490.42 KB

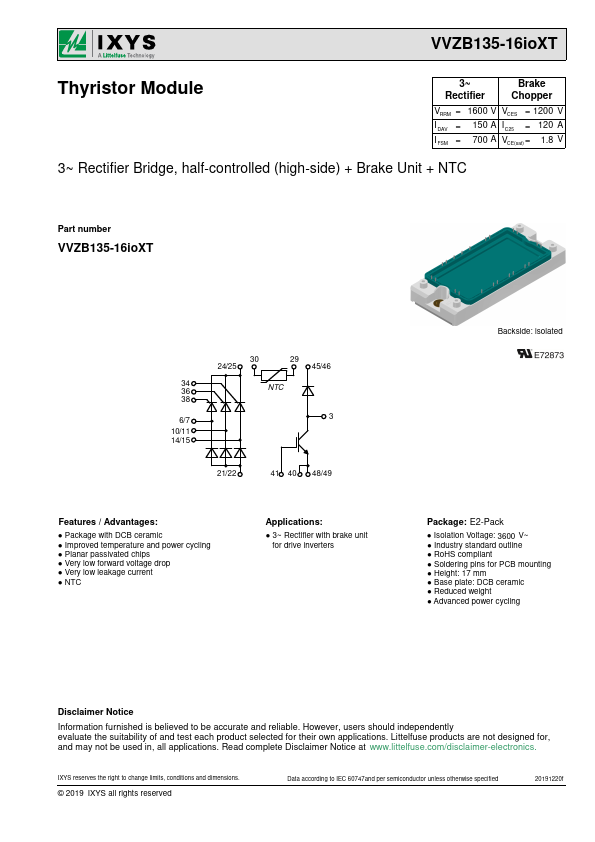

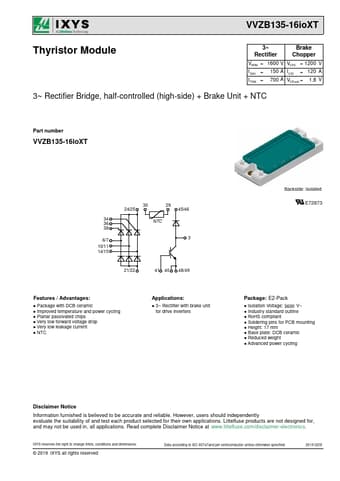

Three phase rectifier bridge.

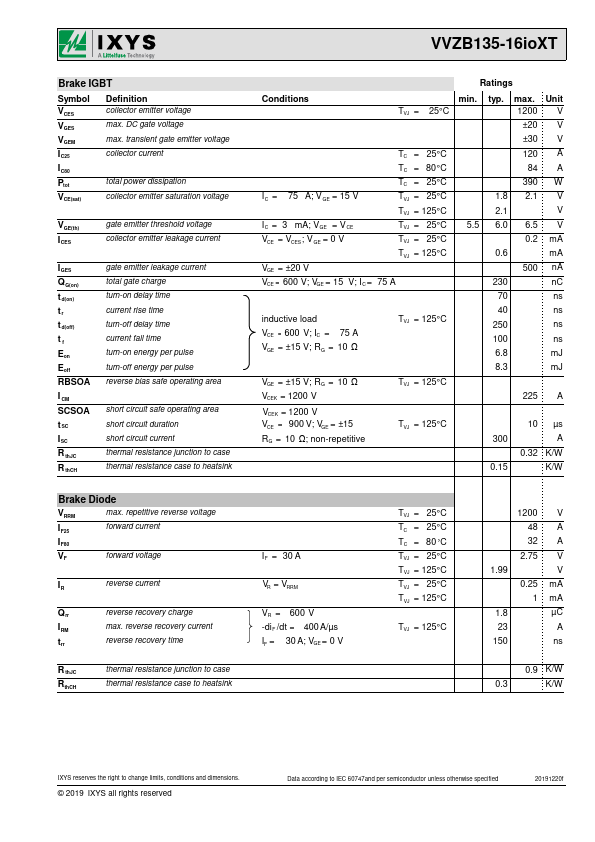

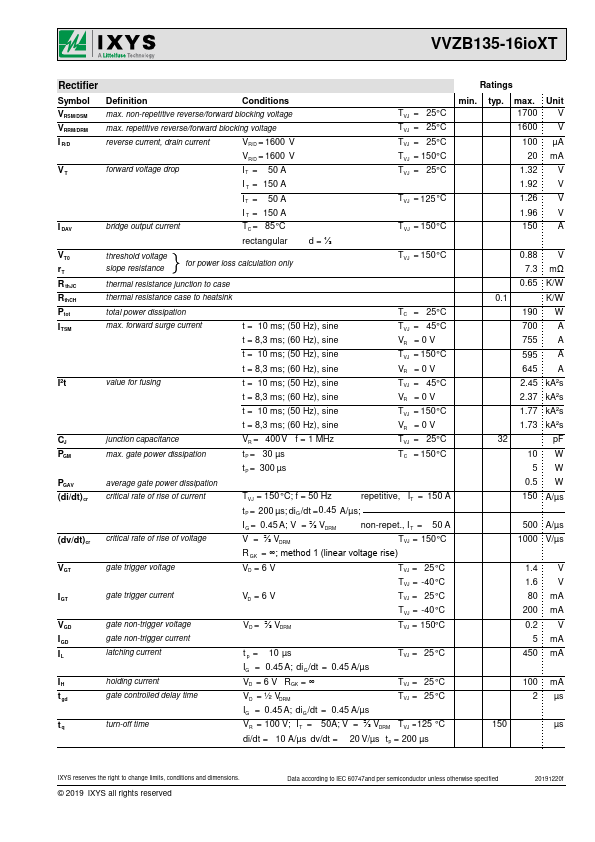

VVZB135-16ioXT Thyristor Module 3~ Rectifier Brake Chopper VRRM = I DAV = I FSM = 1600 V 150 A 700 A VCES = 1200 V IC25 = 120 A V = CE(sat) 1.8 .
