VW2x30-16io1 AC Controller Modules

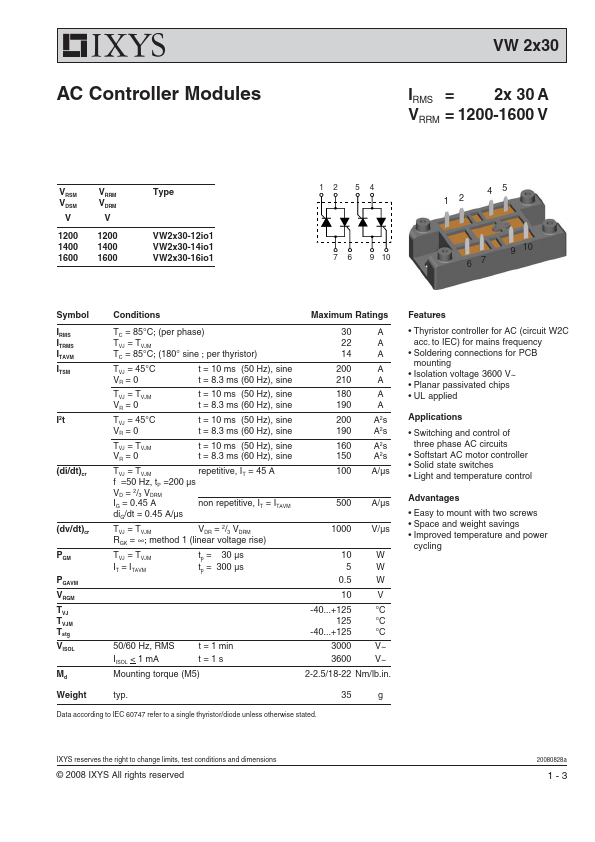

AC Controller Modules VW 2x30 IRMS = 2x 30 A VRRM = 1200-1600 V VRSM VDSM V 1200 1400 1600 VRRM VDRM V 1200 1400 1600 Type VW2x30-12io1 VW2x30-14io1 VW2x30-16io1 12 54 7 6 9 10 12 45 67 9 10 Symbol IRMS ITRMS ITAVM ITSM I2t (di/dt)cr (dv/dt)cr PGM PGAVM VRGM TVJ TVJM Tstg VISOL Md Conditions TC = 85°C; (per phase) TVJ = TVJM TC = 85°C; (180° sine ; per thyristor) TVJ = 45°C VR = 0 t = 10 ms (50 Hz), sine t = 8.3 ms (60 Hz), sine TVJ = TVJM VR = 0 t = 10 ms (50 Hz), sine t = 8..

VW2x30-16io1 Features

* Thyristor controller for AC (circuit W2C acc. to IEC) for mains frequency

* Soldering connections for PCB mounting

* Isolation voltage 3600 V~

* Planar passivated chips

* UL applied Applications

* Switching and control of three phase AC circuits
