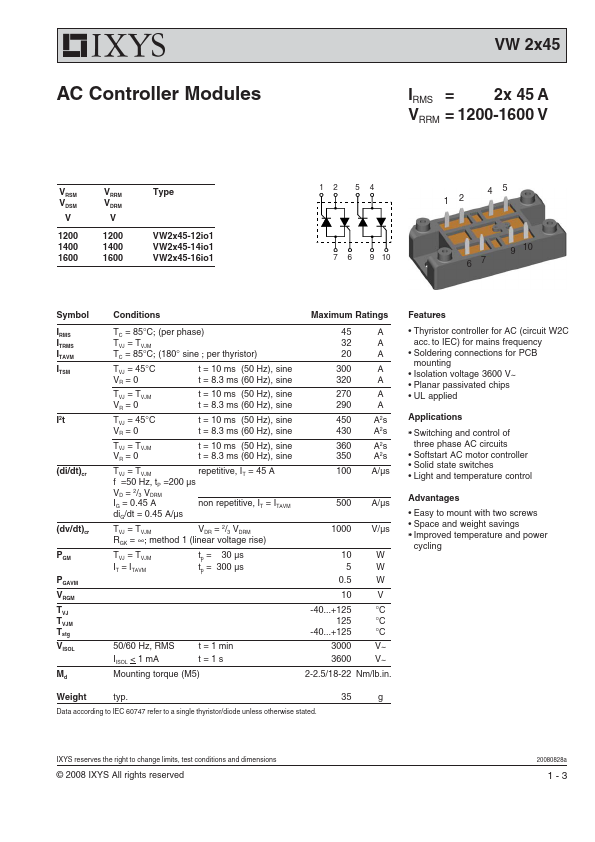

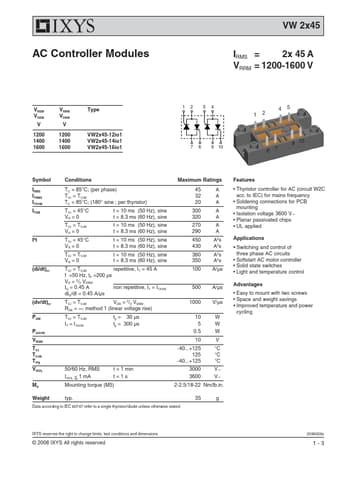

VW2x45-16io1, VW2X45 AC Controller Modules

AC Controller Modules VW 2x45 IRMS = 2x 45 A VRRM = 1200-1600 V VRSM VDSM V 1200 1400 1600 VRRM VDRM V 1200 1400 1600 Type VW2x45-12io1 VW2x45-.

VW2X45_IXYSCorporation.pdf

VW2x45-16io1 Datasheet Preview — This datasheet PDF includes multiple part numbers: VW2x45-16io1, VW2X45. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VW2x45-16io1, VW2X45

Manufacturer:

IXYS

File Size:

87.98 KB

Description:

AC Controller Modules

Note:

This datasheet PDF includes multiple part numbers: VW2x45-16io1, VW2X45.
Please refer to the document for exact specifications by model.

Features

* Thyristor controller for AC (circuit W2C acc. to IEC) for mains frequency
* Soldering connections for PCB mounting
* Isolation voltage 3600 V~
* Planar passivated chips

Applications

* l
* Switching and control of three phase AC circuits
* Softstart AC motor controller
* Solid state switches
* Light and temperature control Advantages
* Easy to mount with two screws
* Space and weight savings l
* Improved temperature and pow
