ILC7011, 80mA SC70 Ultra Low Noise CMOS RF-LDO Regulator

Impala Linear Corporation ILC7011 Preliminary 80mA SC70 Ultra Low Noise CMOS RF-LDO™ Regulator General .
The ILC7011 is an 80mA, Ultra Low Noise, Low Dropout (LDO) linear regulator, designed and processed in Impala’s proprietary CMOS process technology.

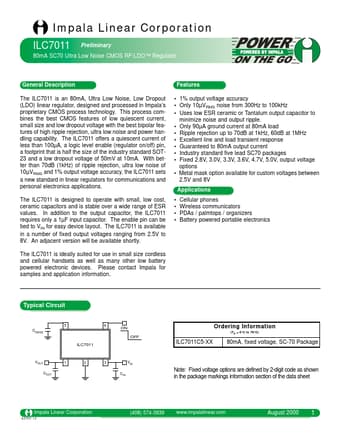

datasheet Preview Page 1 from Datasheet4u.com

ILC7011_ImpalaLinearCorporation.pdf

ILC7011 Datasheet Preview — Preview of ILC7011 PDF

Datasheet Details

Part number:

ILC7011

Manufacturer:

Impala Linear Corporation

File Size:

46.98 KB

Description:

80mA SC70 Ultra Low Noise CMOS RF-LDO Regulator

Features

* of low quiescent current, small size and low dropout voltage with the best bipolar features of high ripple rejection, ultra low noise and power handling capability. The ILC7011 offers a quiescent current of less than 100µA, a logic level enable (regulator on/off) pin, a footprint that is half the si

Applications

* The ILC7011 is designed to operate with small, low cost, ceramic capacitors and is stable over a wide range of ESR values. In addition to the output capacitor, the ILC7011 requires only a 1µF input capacitor. The enable pin can be tied to VIN for easy device layout. The ILC7011 is available in a nu
