ILC7070 - SOT-23 CMOS LDO REGULATOR

ILC7070 Description

Impala Linear Corporation ILC7070 SOT-23 CMOS LDO Regulator with Shutdown General .
Features 150mA CMOS LDO regulator in a 5-lead SOT-23 package, featuring 120mV dropout at 100mA levels and nearly negligible dropout below 5mA.

ILC7070 Features

* 150mA CMOS LDO regulator in a 5-lead SOT-23 package, featuring 120mV dropout at 100mA levels and nearly negligible dropout below 5mA. The part offers ±2% precision as standard, yet draws only 5µA of current in operation and drops to 0.5µA in shutdown. The outputs offer short-circuit protection, and

ILC7070 Applications

* Battery-powered Equipment
* Reference voltage sources
* Portable Cameras and Video Recorders
* PDAs Ordering Information

📥 Download Datasheet

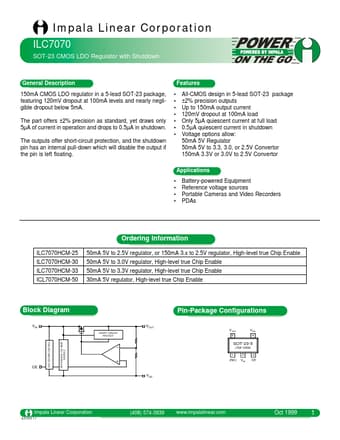

Preview of ILC7070 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ILC7070
Manufacturer
Impala Linear Corporation
File Size
319.25 KB
Datasheet
ILC7070_ImpalaLinearCorporation.pdf
Description
SOT-23 CMOS LDO REGULATOR
