ILC7362 SOT-23 CMOS NEGATIVE LDO

100mA negative LDO in SOT-23 package. This CMOS device regulates a negative supply down to a fixed voltage level at ±2% accuracy. It offers exceptional LDO performance of 120mV dropout at 50mA current levels. The device also comes in a 3-lead SOT-89 package, for a number of voltage and current offer.

ILC7362 Features

* All-CMOS design in SOT-23 and SOT-89 packages gives optimal size and power performance

* ±2% precistion outputs

* 3µA of Iq

* Package and Voltage options alow: 100mA-5V Regulator 50mA-3V Regulator 100mA-5V to -3V Convertor 50mA-5V to -3V Convertor Applications

ILC7362_ImpalaLinearCorporation.pdf

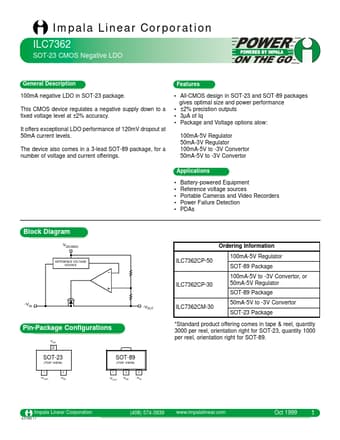

ILC7362 Datasheet Preview — Preview of ILC7362 PDF

Datasheet Details

Part number:

ILC7362

Manufacturer:

Impala Linear Corporation

File Size:

155.21 KB

Description:

Sot-23 cmos negative ldo.
