15N05

N-Channel Mosfet Transistor

15N05 Features

* Drain Current ID= 15A@ TC=25℃

* Drain Source Voltage- : VDSS= 50V(Min)

* Static Drain-Source On-Resistance : RDS(on) = 0.14Ω(Max)

* Fast Switching

* Minimum Lot-to-Lot variations for robust device performance and reliable operation

* APPLICATIONS

* Switch regulators

* Swit

15N05 Datasheet (215.30 KB)

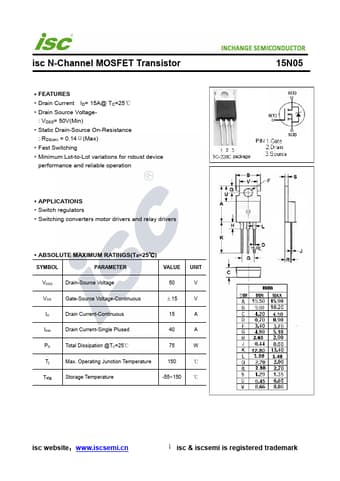

Preview of 15N05 PDF

Datasheet Details

Part number:

15N05

Manufacturer:

Inchange Semiconductor

File Size:

215.30 KB

Description:

N-channel mosfet transistor.
