15N03 N-Channel 30V MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

15N03-VB 15N03-VB Datasheet www.VBsemi.com N-Channel 30-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) 30 RDS(on) () 0.007 at VGS = 10 V 0.009 at VGS =.

📥 Download Datasheet

Preview of 15N03 PDF

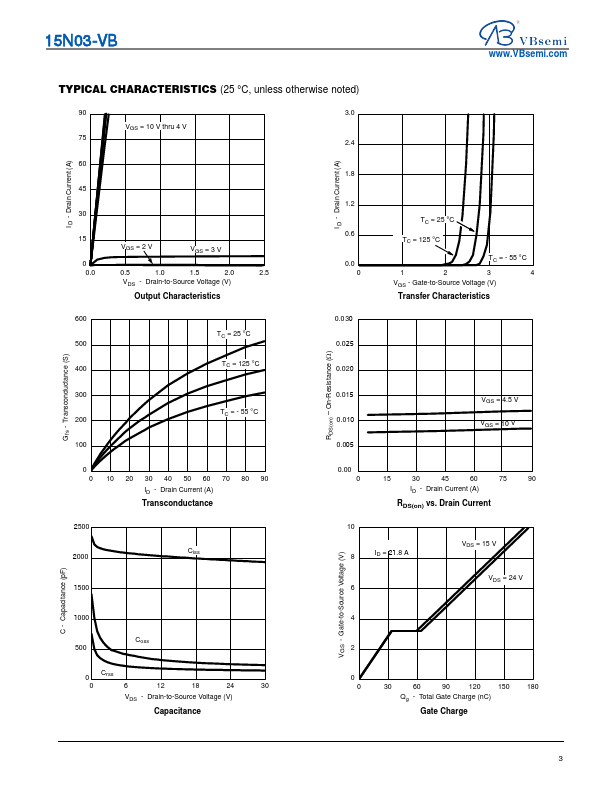

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
15N03
Manufacturer
VBsemi
File Size
223.17 KB
Datasheet
15N03-VBsemi.pdf
Description
N-Channel 30V MOSFET

Features

* TrenchFET® Power MOSFET
* 100 % Rg and UIS Tested

Applications

* OR-ing
* Server
* DC/DC G GDS Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 175 °C) TC = 70 °C TA = 25 °C
