20N10 - N-Channel MOSFET

20N10 Description

INCHANGE Semiconductor isc N-Channel MOSFET Transistor isc Product Specification 20N10 *.

20N10 Features

* Drain Current ID= 20A@ TC=25℃
* Drain Source Voltage- : VDSS= 100V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 0.12Ω(Max)
* Fast Switching

20N10 Applications

* Switch mode power supply.
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 100 ±30 V V ID Drain Current-Continuous 20 A IDM Drain Current-Single Plused 60 A PD Total Dissipation @TC=25℃ 105 W Tj Max. O

📥 Download Datasheet

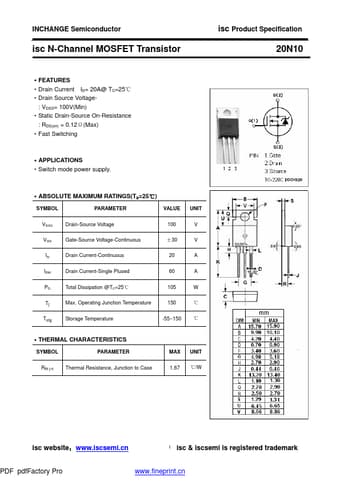

Preview of 20N10 PDF
datasheet Preview Page 2

Datasheet Details

Part number
20N10
Manufacturer
Inchange Semiconductor
File Size
61.93 KB
Datasheet
20N10-InchangeSemiconductor.pdf
Description
N-Channel MOSFET
