20N06 - N-Channel MOSFET

20N06 Description

isc N-Channel MOSFET Transistor INCHANGE Semiconductor 20N06 *.

20N06 Features

* Drain Current ID= 20A@ TC=25℃
* Drain Source Voltage- : VDSS= 60V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 0.085Ω(Max)
* Fast Switching
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

20N06 Applications

* Switching applications in power supplies
* Motor controls,high efficient DC to DC converters
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 60 V VGS Gate-Source Voltage-Continuous ±30 V ID Drain Current-Continuous 20 A IDM Drain

📥 Download Datasheet

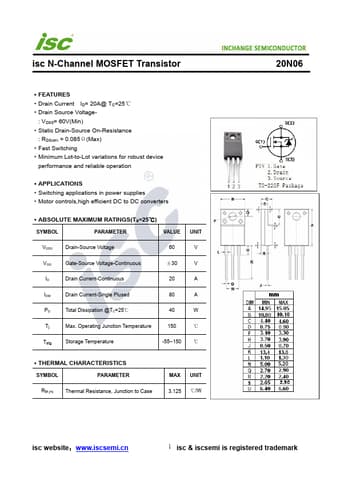

Preview of 20N06 PDF
datasheet Preview Page 2

Datasheet Details

Part number
20N06
Manufacturer
Inchange Semiconductor
File Size
212.89 KB
Datasheet
20N06-InchangeSemiconductor.pdf
Description
N-Channel MOSFET
