20N03 - N-Channel MOSFET

20N03 Description

isc N-Channel MOSFET Transistor 20N03 *.

20N03 Features

* Drain Current- ID= 20A@ TC=25℃
* Drain Source Voltage- : VDSS= 30V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 20mΩ(Max)
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

20N03 Applications

* Switching power supplies,converters,AC and DC motor controls
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 30 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 20 A IDM Drain Current-Single Plused 80 A PD

📥 Download Datasheet

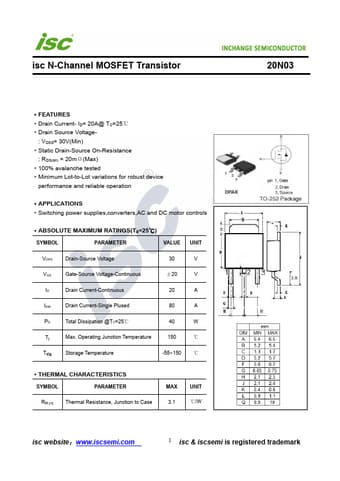

Preview of 20N03 PDF
datasheet Preview Page 2

Datasheet Details

Part number
20N03
Manufacturer
INCHANGE
File Size
227.81 KB
Datasheet
20N03-INCHANGE.pdf
Description
N-Channel MOSFET
