2SA1837 POWER TRANSISTOR

2SA1837 Description

isc Silicon PNP Power Transistor INCHANGE Semiconductor 2SA1837 .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= -230V(Min). High Current-Gain Bandwidth Product. Complement to Type 2SC4793. Minimum.

2SA1837 Applications

* Power amplifier applications.
* Driver stage amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -230 V VCEO Collector-Emitter Voltage -230 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -1 A

📥 Download Datasheet

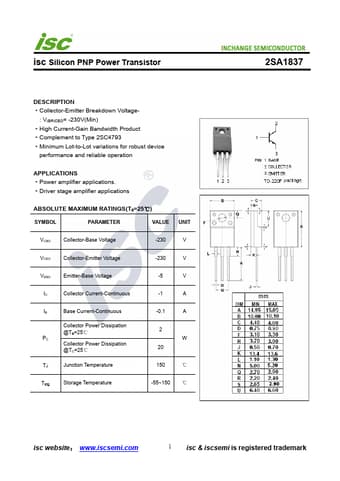

Preview of 2SA1837 PDF
datasheet Preview Page 2
