2SK1520, N-Channel MOSFET Transistor

isc N-Channel MOSFET Transistor 2SK1520 ESCRIPTION *Drain Current *ID=30A@ TC=25℃ *Drain Source Voltage- : VDSS=500 (Min) *Minim.

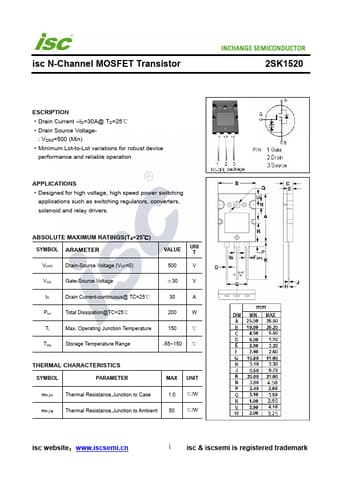

datasheet Preview Page 1 from Datasheet4u.com

2SK1520-InchangeSemiconductor.pdf

2SK1520 Datasheet Preview — Preview of 2SK1520 PDF

Datasheet Details

Part number:

2SK1520

Manufacturer:

Inchange Semiconductor

File Size:

215.47 KB

Description:

N-Channel MOSFET Transistor

Applications

* Designed for high voltage, high speed power switching applications such as switching regulators, converters, solenoid and relay drivers. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VDSS Drain-Source Voltage (VGS=0) VALUE UNI T 500 V VGS Gate-Source Voltage ±30 V ID Drain Curre
