2SK1534 - N-Channel MOSFET Transistor

2SK1534 Description

isc N-Channel MOSFET Transistor 2SK1534 .
Drain Current. ID=3A@ TC=25℃. Drain Source Voltage- : VDSS=900 (Min). Minimum Lot-to-Lot variations for robust device performance.

2SK1534 Applications

* Designed especially for high voltage,high speed applications, such as off-line switching power supplies , UPS,AC and DC motor controls,relay and solenoid drivers. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VDSS Drain-Source Voltage (VGS=0) VALUE UNI T 900 V VGS Gate-Source Voltag

📥 Download Datasheet

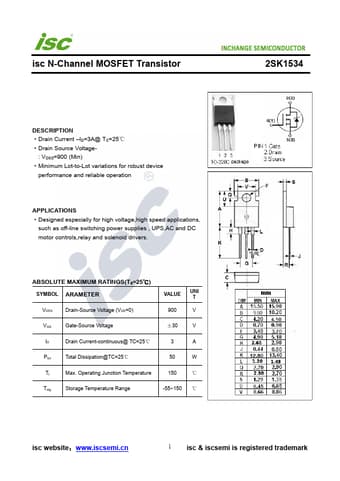

Preview of 2SK1534 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SK1534
Manufacturer
Inchange Semiconductor
File Size
213.52 KB
Datasheet
2SK1534-InchangeSemiconductor.pdf
Description
N-Channel MOSFET Transistor
