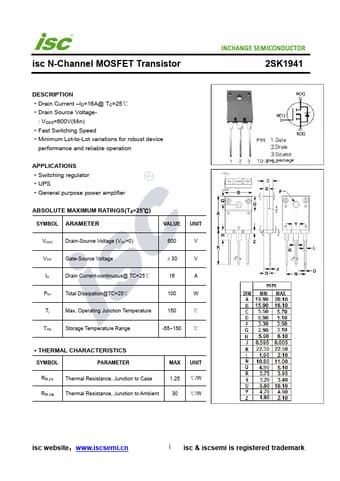

2SK1941 Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

2SK1941

Manufacturer:

Inchange Semiconductor

File Size:

221.49kb

Download:

📄 Datasheet

Description:

N-channel mosfet transistor.

Drain Current   –ID=16A@ TC=25℃

Drain Source Voltage- : VDSS=600V(Min)

Fast Switching Speed

2SK1941 Application

• Applications
• Switching regulator
• UPS
• General purpose power amplifier ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER V
