2SK3481-Z

N-Channel MOSFET Transistor

2SK3481-Z Features

* Drain Current : ID= 30A@ TC=25℃

* Drain Source Voltage : VDSS= 100V(Min)

* Static Drain-Source On-Resistance : RDS(on) = 50mΩ(Max) @ VGS= 10V

* 100% avalanche tested

* Minimum Lot-to-Lot variations for robust device performance and reliable operation DESCRIPTION

* motor drive, D

2SK3481-Z General Description


*motor drive, DC-DC converter, power switch and solenoid drive. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 100 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 30 A IDM Drain Current-Single Pluse 60 A PD Tot.

2SK3481-Z Datasheet (357.74 KB)

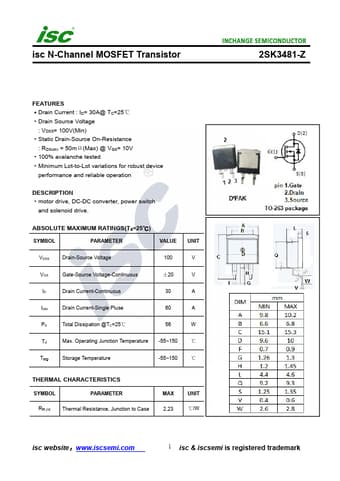

Preview of 2SK3481-Z PDF

Datasheet Details

Part number:

2SK3481-Z

Manufacturer:

Inchange Semiconductor

File Size:

357.74 KB

Description:

N-channel mosfet transistor.
