2SK688 - N-Channel MOSFET Transistor

2SK688 Description

INCHANGE Semiconductor isc N-Channel MOSFET Transistor isc Product Specification 2SK688 .
Drain Current. ID=15A@ TC=25℃. Drain Source Voltage- : VDSS= 60V(Min). Fast Switching Speed APPLICATIONS. High speed power sw.

2SK688 Applications

* High speed power switching ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS VGS ID Ptot Tj Tstg Drain-Source Voltage (VGS=0) 60 V Gate-Source Voltage ±20 V Drain Current-continuous@ TC=25℃ 15 A Total Dissipation@TC=25℃ 60 W Max. Operating Junction Temperature 150 ℃

📥 Download Datasheet

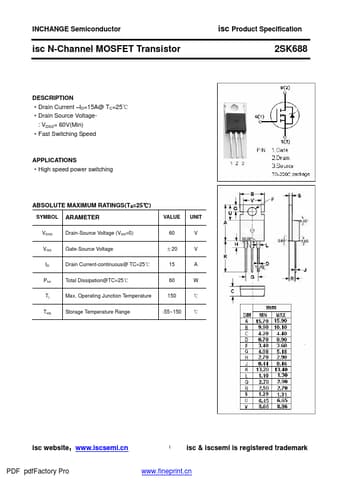

Preview of 2SK688 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SK688
Manufacturer
Inchange Semiconductor
File Size
59.91 KB
Datasheet
2SK688-InchangeSemiconductor.pdf
Description
N-Channel MOSFET Transistor
