2SK817

N-Channel MOSFET Transistor

2SK817 Features

* Drain Current : ID= 26A@ TC=25℃

* Drain Source Voltage : VDSS= 60V(Min)

* Static Drain-Source On-Resistance : RDS(on) = 55mΩ(Max) @ VGS= 10V

* 100% avalanche tested

* Minimum Lot-to-Lot variations for robust device performance and reliable operation DESCRIPTION

* motor drive, DC

2SK817 General Description


*motor drive, DC-DC converter, power switch and solenoid drive. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 60 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 26 A IDM Drain Current-Single Pluse 104 A PD Tot.

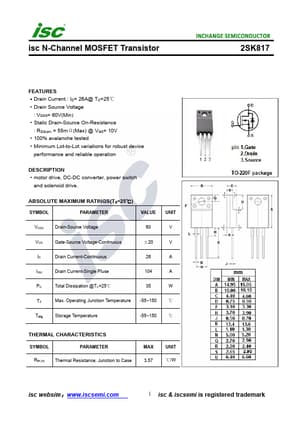

2SK817 Datasheet (279.90 KB)

Preview of 2SK817 PDF

Datasheet Details

Part number:

2SK817

Manufacturer:

Inchange Semiconductor

File Size:

279.90 KB

Description:

N-channel mosfet transistor.
