2SK892 - N-Channel MOSFET Transistor

📥 Download Datasheet

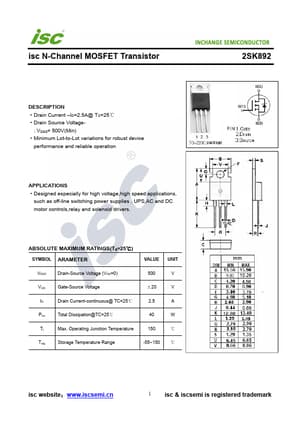

Preview of 2SK892 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SK892
Manufacturer Inchange Semiconductor
File Size 197.81 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet 2SK892-InchangeSemiconductor.pdf

2SK892 Product details

Description

Drain Current ID=2.5A@ TC=25℃ Drain Source Voltage- : VDSS= 500V(Min) Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed especially for high voltage,high speed applications, such as off-line switching power supplies , UPS,AC and DC motor controls,relay and solenoid drivers.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 500 V VGS Gate-Source Voltage ±20 V
