2SK947, 2SK947-MR - N-Channel MOSFET Transistor

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2SK947, 2SK947-MR. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Details

Part number 2SK947, 2SK947-MR
Manufacturer Inchange Semiconductor
File Size 279.63 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet 2SK947-MR-InchangeSemiconductor.pdf
Note This datasheet PDF includes multiple part numbers: 2SK947, 2SK947-MR.
Please refer to the document for exact specifications by model.

2SK947 Product details

Description

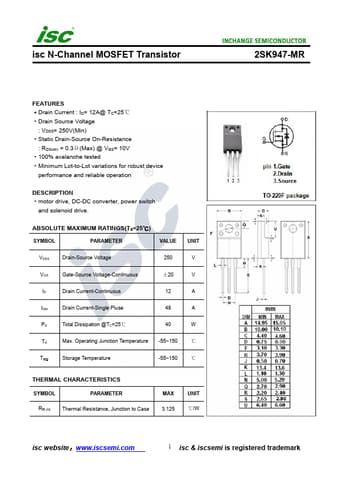

motor drive, DC-DC converter, power switch and solenoid drive.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 250 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 12 A IDM Drain Current-Single Pluse 48 A PD Total Dissipation @TC=25℃ 40 W TJ Max.Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance, Juncti
