2SK944 - N-Channel MOSFET Transistor

2SK944 Description

isc N-Channel MOSFET Transistor 2SK944 .
Drain Current. ID=22A@ TC=25℃. Drain Source Voltage- : VDSS=250V(Min). Fast Switching Speed. Minimum Lot-to-Lot variations fo.

2SK944 Applications

* high speed applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 250 V VGS Gate-Source Voltage ±20 V ID Drain Current-continuous@ TC=25℃ 22 A Ptot Total Dissipation@TC=25℃ 150 W Tj Max. Operating Junction Temperature 150

📥 Download Datasheet

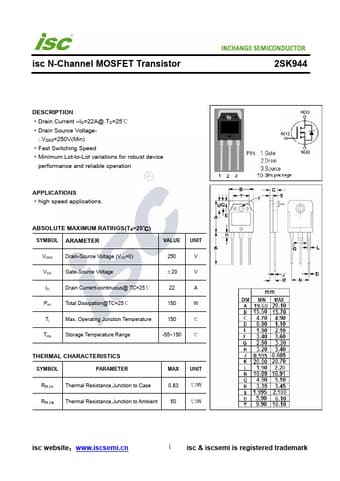

Preview of 2SK944 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SK944
Manufacturer
Inchange Semiconductor
File Size
203.58 KB
Datasheet
2SK944-InchangeSemiconductor.pdf
Description
N-Channel MOSFET Transistor
