Datasheet Details
| Part number | 7N40 |
|---|---|
| Manufacturer | Inchange Semiconductor |
| File Size | 43.71 KB |
| Description | N-Channel MOSFET Transistor |
| Datasheet |

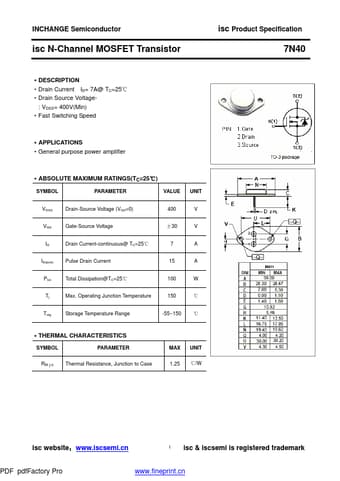

 7N40-InchangeSemiconductor.pdf
|
| Part number | 7N40 |
|---|---|
| Manufacturer | Inchange Semiconductor |
| File Size | 43.71 KB |
| Description | N-Channel MOSFET Transistor |
| Datasheet |
7N40-InchangeSemiconductor.pdf
|
Drain Current ID= 7A@ TC=25℃ Drain Source Voltage- : VDSS= 400V(Min) Fast Switching Speed APPLICATIONS General purpose power amplifier ABSOLUTE MAXIMUM RATINGS(TC=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) VGS Gate-Source Voltage ID Drain Current-continuous@ TC=25℃ 400 ±30 7 V V A ID(puls) Pulse Drain Current 15 A Ptot Total Dissipation@TC=25℃ 100 W Tj Max.Operating Junction Temperature 150 ℃ Tstg Storage Temperature Range
