7N431K Datasheet - JOYIN

7N431K METAL OXIDE VARISTOR

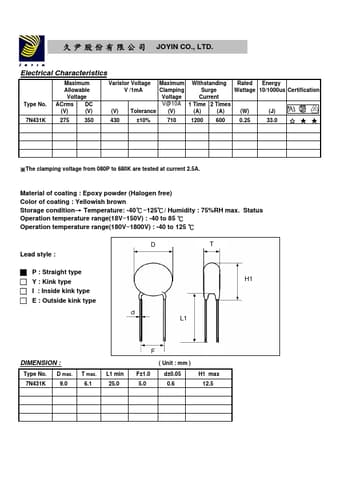

JOYIN CO., LTD. Electrical Characteristics Type No. 7N431K Maximum Allowable Voltage ACrms DC (V) (V) 275 350 Varistor Voltage Maximum Withstanding Rated Energy V /1mA Clamping Surge Wattage 10/1000us Certification Voltage Current V@10A 1 Time 2 Times (V) Tolerance (V) (A) (A) (W) (J) 430 ±10% 710 1200 600 0.25 33.0 ☆ ★ ★ ※The clamping voltage from 080P to 680K are tested at current 2.5A. Material of coating : Epoxy powder (Halogen free) Color of coating : .

7N431K Datasheet (65.50 KB)

7N431K Datasheet Preview — Preview of 7N431K PDF

Datasheet Details

Part number:

7N431K

Manufacturer:

JOYIN

File Size:

65.50 KB

Description:

Metal oxide varistor.
