BA7805FP - Three Terminal Positive Voltage Regulator

Datasheet Summary

Features

Output current in excess of 1 A.
Output voltage of 5V.
Internal thermal overload protection.
Output transition Safe-Area compensation.
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.

Inchange Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	BA7805FP
Manufacturer	Inchange Semiconductor
File Size	218.10 KB
Description	Three Terminal Positive Voltage Regulator
Datasheet	BA7805FP Datasheet
Additional preview pages of the BA7805FP datasheet.

📁 Similar Datasheet

BA7805FP - 3-Terminal Regulator (Rohm)
BA7805 - 78-Series Regulators (Rohm)
BA7805CP - 3-Terminal Regulator (Rohm)
BA7806 - 78-Series Regulators (Rohm)
BA7806CP - 3-Terminal Regulator (Rohm)
BA7806FP - 3-Terminal Regulator (Rohm)
BA7807 - 78-Series Regulators (Rohm)
BA7807CP - 3-Terminal Regulator (Rohm)
BA7807FP - 3-Terminal Regulator (Rohm)
BA7808 - 78-Series Regulators (Rohm)

Other Datasheets by Inchange Semiconductor

Full PDF Text Transcription

Click to expand full text

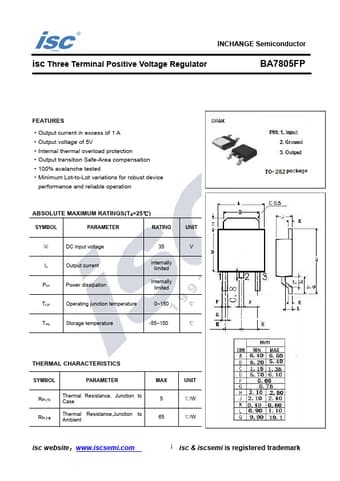

INCHANGE Semiconductor isc Three Terminal Positive Voltage Regulator BA7805FP FEATURES ·Output current in excess of 1 A ·Output voltage of 5V ·Internal thermal overload protection ·Output transition Safe-Area compensation ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER RATING UNIT Vi DC input voltage 35 V Io Output current Ptot Power dissipation internally limited internally limited TOP Operating junction temperature 0~150 ℃ Tstg Storage temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Rth j-a Thermal Resistance, Junction to Case Thermal Resistance,Junction to Ambient MAX 5 65 UNIT ℃/W ℃/W isc website：www.iscsemi.
