BA7807CP 3-Terminal Regulator

BA78 * *, BA78M * * series are three-terminal regulators available with several fixed output voltages. It supplies the stable fixes voltage from unstable direct input voltage. The useful output voltage lineup is 5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V, 20V, 24V with 0.5A /.

BA7807CP Features

* 1) Built-in over-current protection circuit and thermal shutdown circuit 2) High ripple rejection 3) Available TO220CP-3, TO252-3 package to a wide range application 4) Compatible replacement to competitor products 5) Various voltage lineup (5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V, 20V, 24V)

* Ap

BA7805-Rohm.pdf

This datasheet PDF includes multiple part numbers: BA7807CP, BA7805. Please refer to the document for exact specifications by model.

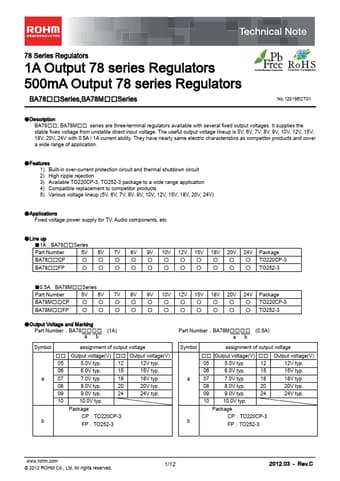

BA7807CP Datasheet Preview Page 2 BA7807CP Datasheet Preview Page 3

Datasheet Details

Part number:

BA7807CP, BA7805

Manufacturer:

ROHM ↗

File Size:

867.56 KB

Description:

3-terminal regulator.

Note:

This datasheet PDF includes multiple part numbers: BA7807CP, BA7805.
Please refer to the document for exact specifications by model.
