BT131-600F - Triacs

Datasheet Summary

Features

With TO-92 package.
Glass passivated,sensitive gate triacs in a plastic envelope.
Intended for use in general purpose bidirectional switching and phase control.

Inchange Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	BT131-600F
Manufacturer	Inchange Semiconductor
File Size	109.66 KB
Description	Triacs
Datasheet	BT131-600F Datasheet

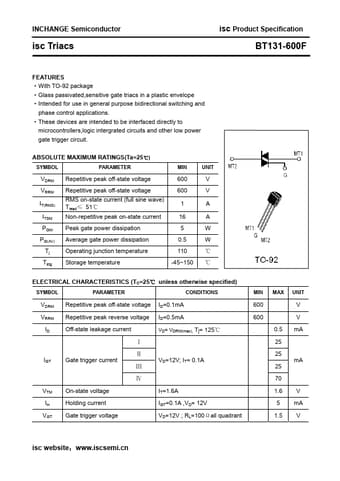

Additional preview pages of the BT131-600F datasheet.

📁 Similar Datasheet

BT131-600 - 4Q Triac (NXP)
BT131-600 - 4Q Triac (WeEn)
BT131-600 - Sensitive Gate Triacs (HAOPIN)
BT131-600D - 4Q Triac (WeEn)
BT131-600D - 4Q Triac (NXP)
BT131-600E - 4Q Triac (WeEn)
BT131-600E - 4Q Triac (NXP)
BT131-500 - Triacs (NXP)
BT131-800 - 4Q Triac (WeEn)
BT131-800 - Triacs (NXP)

Other Datasheets by Inchange Semiconductor

BT131-600D - Triacs
BT131-600E - Triacs
BT131-500 - Triacs
BT131-800 - Triacs
BT131 - Triacs
BT134-600B - Triacs
BT134-600D - Triacs
BT134-600E - Triacs

Full PDF Text Transcription

Click to expand full text

INCHANGE Semiconductor isc Triacs isc Product Specification BT131-600F FEATURES ·With TO-92 package ·Glass passivated,sensitive gate triacs in a plastic envelope ·Intended for use in general purpose bidirectional switching and phase control applications. ·These devices are intended to be interfaced directly to microcontrollers,logic intergrated circuits and other low power gate trigger circuit. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER MIN VDRM VRRM IT(RMS) ITSM PGM PG(AV) Tj Tstg Repetitive peak off-state voltage 600 Repetitive peak off-state voltage RMS on-state current (full sine wave) Tlead≤ 51℃ Non-repetitive peak on-state current 600 1 16 Peak gate power dissipation 5 Average gate power dissipation 0.
