BT131-600D - 4Q Triac

Datasheet Summary

Description

Planar passivated very sensitive gate four quadrant triac in a TO92 plastic package.This very sensitive gate "series D" triac is intended for interfacing with low power drivers including microcontrollers.

2.

Features

  • Direct interfacing to logic level ICs.
  • Direct interfacing with low power gate drivers and microcontrollers.
  • High blocking voltage capability.
  • Planar passivated for voltage ruggedness and reliability.
  • Very sensitive gate.
  • Triggering in all four quadrants 3.

📥 Download Datasheet

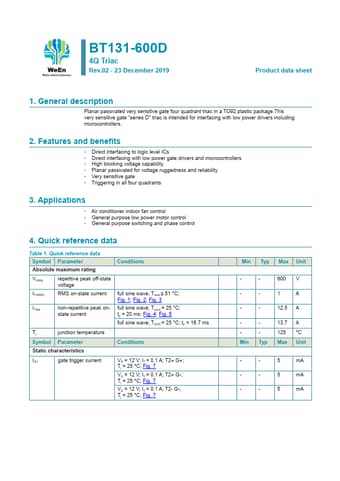

Datasheet preview – BT131-600D

Datasheet Details

Part number BT131-600D
Manufacturer WeEn
File Size 496.15 KB
Description 4Q Triac
Datasheet download datasheet BT131-600D Datasheet
Additional preview pages of the BT131-600D datasheet.

📁 Similar Datasheet

Other Datasheets by WeEn

Full PDF Text Transcription

Click to expand full text
BT131-600D 4Q Triac Rev.02 - 23 December 2019 Product data sheet 1. General description Planar passivated very sensitive gate four quadrant triac in a TO92 plastic package.This very sensitive gate "series D" triac is intended for interfacing with low power drivers including microcontrollers. 2. Features and benefits • Direct interfacing to logic level ICs • Direct interfacing with low power gate drivers and microcontrollers • High blocking voltage capability • Planar passivated for voltage ruggedness and reliability • Very sensitive gate • Triggering in all four quadrants 3. Applications • Air conditioner indoor fan control • General purpose low power motor control • General purpose switching and phase control 4. Quick reference data Table 1.
