TIC216M - Triacs

Datasheet Summary

Features

  • With TO-220 package.
  • Sensitive Gate Triacs.
  • Glass Passivated.
  • Max IGT of 5 mA (Quadrants 1~3).
  • 100% avalanche tested.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

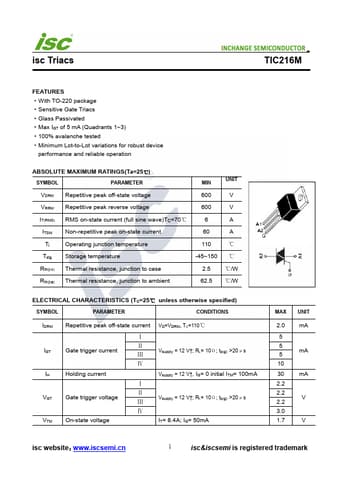

Datasheet preview – TIC216M

Datasheet Details

Part number TIC216M
Manufacturer Inchange Semiconductor
File Size 162.23 KB
Description Triacs
Datasheet download datasheet TIC216M Datasheet
Additional preview pages of the TIC216M datasheet.

📁 Similar Datasheet

  • TIC216M - SILICON TRIACS (Bourns)
  • TIC216M - (TIC216x) SILICON TRIACS (Comset Semiconductors)
  • TIC216 - SILICON TRIACS (Power Innovations Limited)
  • TIC216 - Triac (INCHANGE)
  • TIC216A - (TIC216x) SILICON TRIACS (Comset Semiconductors)
  • TIC216B - (TIC216x) SILICON TRIACS (Comset Semiconductors)
  • TIC216D - SILICON TRIACS (Bourns)
  • TIC216D - (TIC216x) SILICON TRIACS (Comset Semiconductors)
  • TIC216N - SILICON TRIACS (Bourns)
  • TIC216N - (TIC216x) SILICON TRIACS (Comset Semiconductors)
Other Datasheets by Inchange Semiconductor

Full PDF Text Transcription

Click to expand full text
isc Triacs TIC216M FEATURES ·With TO-220 package ·Sensitive Gate Triacs ·Glass Passivated ·Max IGT of 5 mA (Quadrants 1~3) ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDRM Repetitive peak off-state voltage VRRM Repetitive peak reverse voltage IT(RMS) RMS on-state current (full sine wave)TC=70℃ ITSM Non-repetitive peak on-state current Tj Operating junction temperature Tstg Storage temperature Rth(j-c) Thermal resistance, junction to case Rth(j-a) Thermal resistance, junction to ambient MIN 600 600 6 60 110 -45~150 2.5 62.
